Electronic Throttle Control Relay: Removal

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lower cover. < Refer to REMOVAL , Glove Box. >
Remove the electronic throttle control relay from the relay block on the back side of the glove box.

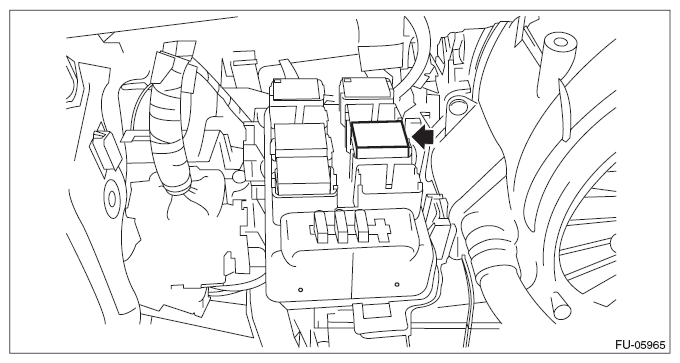

Fig 2: Locating Electronic Throttle Control Relay
Courtesy of SUBARU OF AMERICA, INC.
