Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

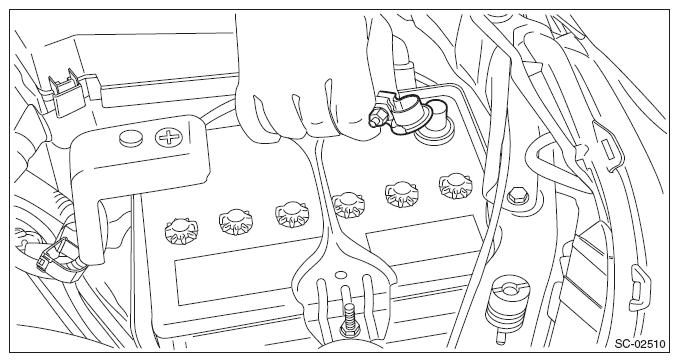

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lower cover. < Refer to REMOVAL , Glove Box. >
Remove the lower inner trim of passenger's side. < Refer to REMOVAL , Lower Inner Trim. >
Turn over the floor mat of passenger's seat.
Remove the protect cover.

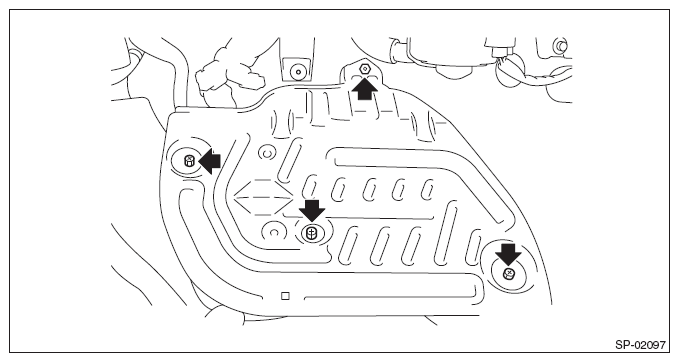

Fig 2: Locating Protect Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.

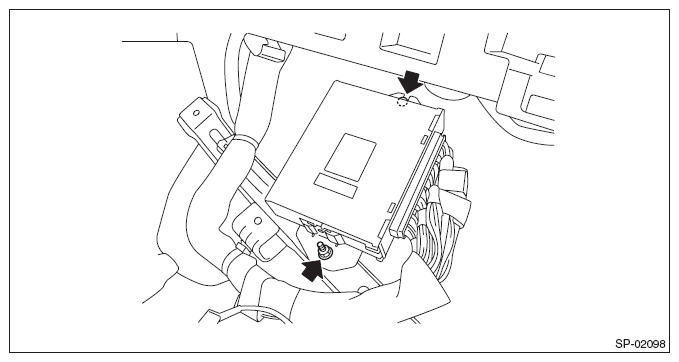

Fig 3: Locating ECM Mounting Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors, and take out the ECM.
