Engine Coolant Temperature Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

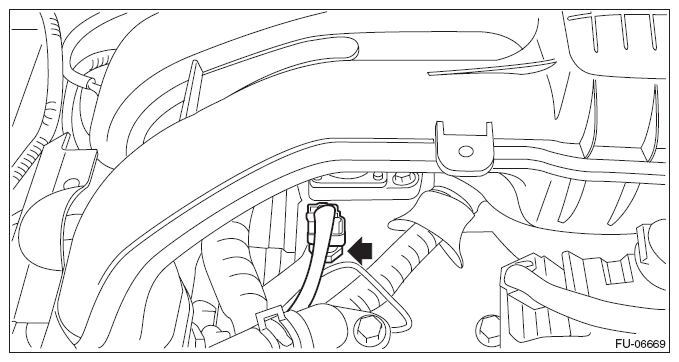

Fig 1: Locating Engine Coolant Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 2: Locating Clamp Bolts

Courtesy of SUBARU OF AMERICA, INC.
