Engine Oil Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Connecting/Disconnecting Battery Ground Terminal
    G08570271Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A) from the engine oil temperature sensor, and remove the engine coolant temperature sensor from the chain cover.

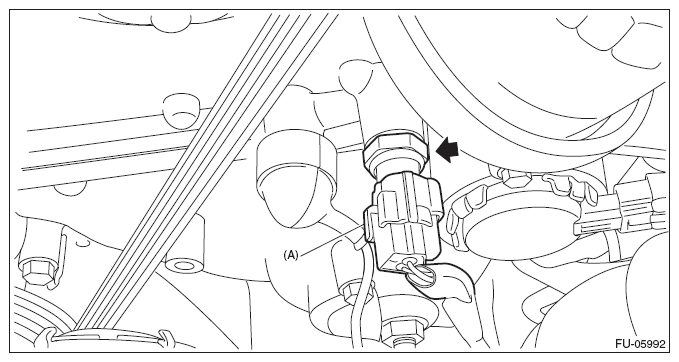

    Fig 2: Locating Engine Oil Temperature Sensor Connector
    G08562614Courtesy of SUBARU OF AMERICA, INC.
