Fuel Injector: Removal

Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 2: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron. (RH side only)

Fig 3: Identifying Air Intake Boot And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) which holds the mass air flow and intake air temperature sensor harness. (RH side only)
Remove the suction hose (C) from the air cleaner case (rear). (RH side only)

Fig 4: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector, Clip And Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear). (RH side only)

Fig 5: Locating Air Cleaner Case Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold protector.
- LH side

  Fig 6: Locating Intake Manifold Protector Bolts (LH)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

  Fig 7: Locating Intake Manifold Protector Bolts (RH)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors (A) from fuel injector.
Remove the bolts which hold fuel pipe onto the cam carrier.

Fig 8: Identifying Fuel Injector Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

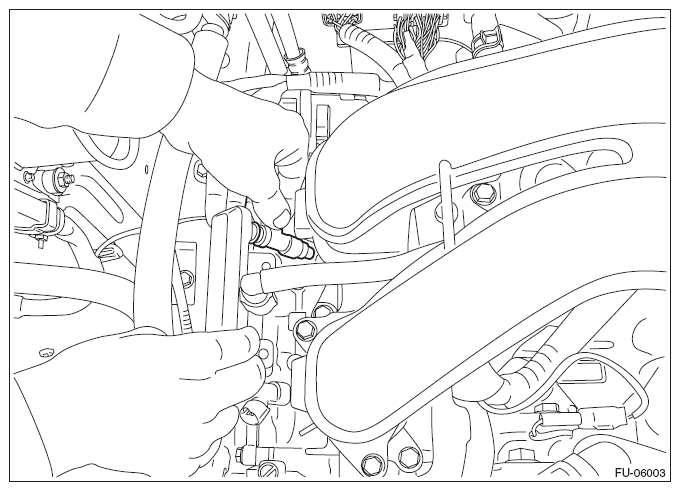

Fig 9: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
