Fuel Level Sensor: Removal
WARNING:
Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
- Be careful not to spill fuel.
- If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.
NOTE:
The fuel level sensor is built in fuel pump assembly.
- Remove the fuel pump assembly. < Refer to REMOVAL , Fuel Pump. >

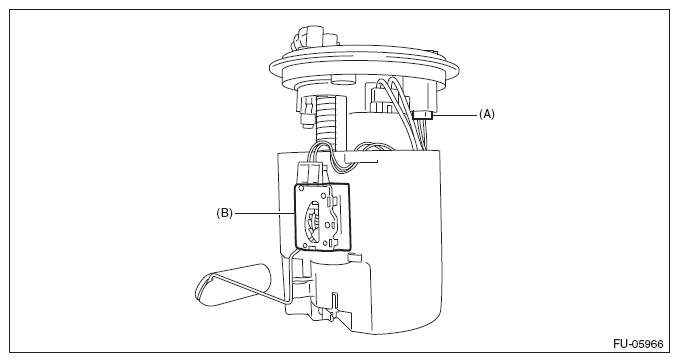

- Disconnect the connector (A) from fuel level sensor.
- Remove the fuel level sensor (B).
