Intake Manifold: Disassembly

Remove the throttle body. < Refer to REMOVAL , Throttle Body. >
Remove the purge control solenoid valve. < Refer to REMOVAL , Purge Control Solenoid Valve. >
Remove the manifold absolute pressure sensor. < Refer to REMOVAL , Manifold Absolute Pressure Sensor. >
Remove the EGR pipe from intake manifold.

Fig 1: Locating EGR Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel delivery pipe from intake manifold.
NOTE: Disconnect the quick connector as shown in the figure.

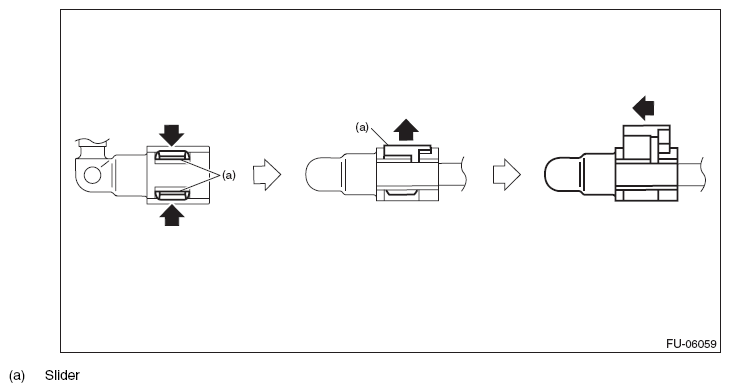

Fig 2: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe and cap from the intake manifold.

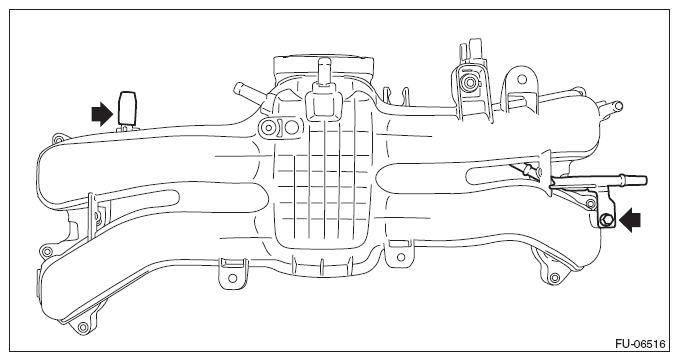

Fig 4: Locating Fuel Pipe, Bolt And Cap
Courtesy of SUBARU OF AMERICA, INC.
