Oil Control Solenoid: Removal

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (rear). (RH side only) < Refer to REMOVAL , Air Intake Duct. >
Remove the reservoir tank. (LH side only) < Refer to REMOVAL , Reservoir Tank. >
Disconnect the connector (A) from the intake oil control solenoid, and remove the intake oil control solenoid from the chain cover.
- RH side

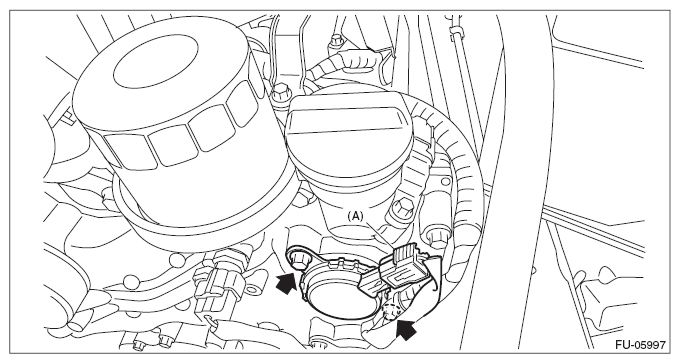

  Fig 2: Identifying Intake Oil Control Solenoid Connector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

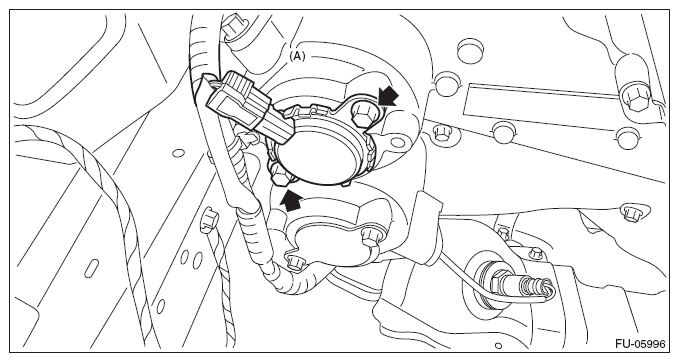

  Fig 3: Identifying Intake Oil Control Solenoid Connector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
