Tumble Generator Valve Assembly: Removal

Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
Disconnect the connectors (A) from fuel injector.
Disconnect the connector (B) from the tumble generator valve assembly.
Remove the tumble generator valve assembly from the cylinder head.
- LH side

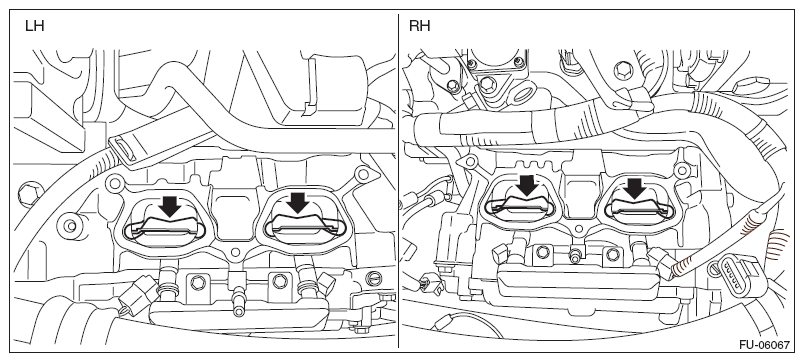

  Fig 2: Identifying Fuel Injector And Tumble Generator Valve Assembly Connectors (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

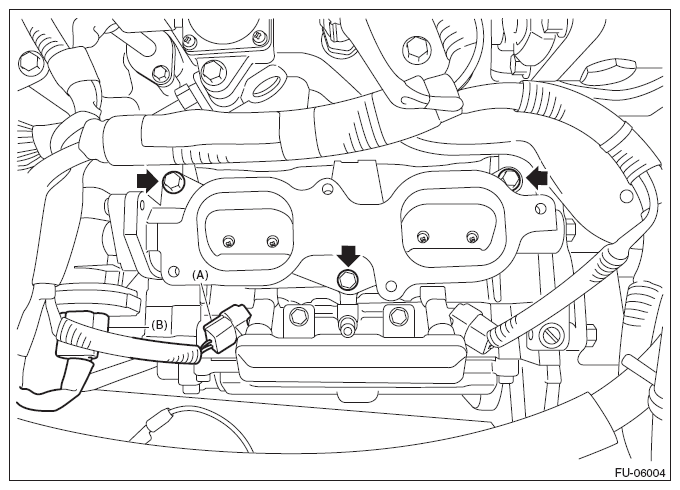

  Fig 3: Identifying Fuel Injector And Tumble Generator Valve Assembly Connectors (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the cylinder head plate from cylinder head.

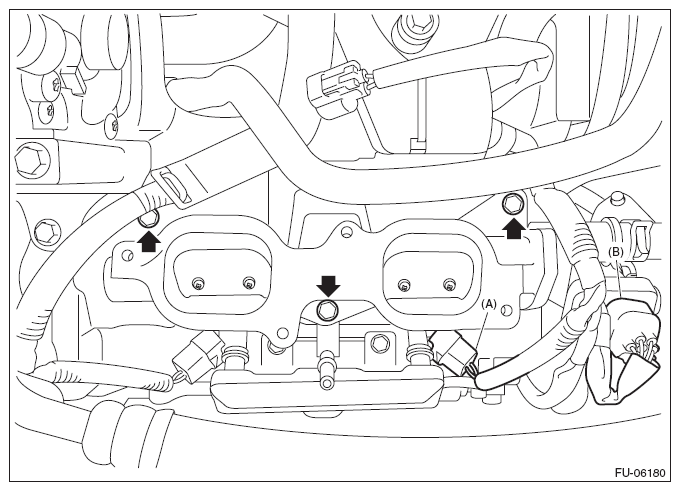

Fig 4: Locating Cylinder Head Plate
Courtesy of SUBARU OF AMERICA, INC.
