Non-Turbo Model

Temporarily tighten the crankshaft position sensor plate, drive plate and reinforcement drive plate.
NOTE: Align the knock pin hole of the crankshaft position sensor plate to the crankshaft knock pin to secure the knock pin.
Set the ST.
ST 498497300 CRANKSHAFT STOPPER

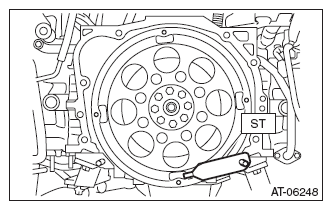

Fig 1: Identifying Crankshaft Stopper (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in two stages.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)
2. While checking the tightening angle with the ST, further tighten the drive plate mounting bolts.
  Tightening angle:

  30° - 35°

  ST 18854AA000 ANGLE GAUGE

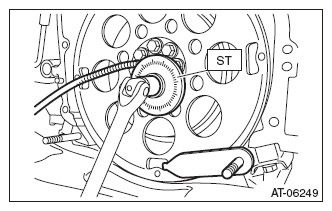

  Fig 2: Tightening Drive Plate Mounting Bolts Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
