Turbo Model

Temporarily tighten the drive plate and reinforcement drive plate.
Set the ST.
ST 498497100 CRANKSHAFT STOPPER

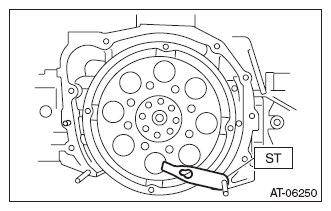

Fig 1: Identifying Crankshaft Stopper (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in three stages.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  10 N.m (1.0 kgf-m, 7.4 ft-lb)
2. Additionally tighten the drive plate mounting bolts.
  Tightening torque:

  40 N.m (4.1 kgf-m, 29.5 ft-lb)
3. While checking the tightening angle with the ST, further tighten the drive plate mounting bolts.
  Tightening angle:

  30°±5°

  ST 18854AA000 ANGLE GAUGE
Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
