Turbo Model

  1. Remove the transmission assembly from the vehicle. < Refer to REMOVAL , Automatic Transmission Assembly. >
  2. Use the ST to lock the crankshaft, and remove the drive plate.

    ST 498497100 CRANKSHAFT STOPPER

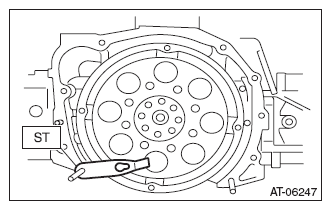

    Fig 1: Locking Crankshaft Using Special Tool (Turbo Model)
    G08563996Courtesy of SUBARU OF AMERICA, INC.
