Front Vehicle Speed Sensor: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Remove the air intake boot assembly. (non-turbo model) < Refer to REMOVAL , Air Intake Boot. >
  4. Remove the intercooler. (turbo model) < Refer to REMOVAL , Intercooler. >
  5. Disconnect the transmission harness connector.

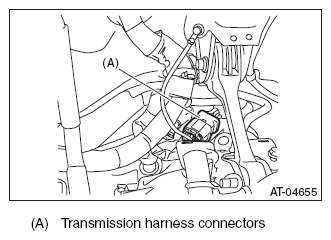

    Fig 1: Identifying Transmission Harness Connector
    G08563942Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper. < Refer to REMOVAL , Transmission Mounting System. >
  7. Remove the transmission harness connector from stay.
  8. Lift up the vehicle.
  9. Clean the transmission exterior.
  10. Remove the drain plug (ATF) to drain ATF.
    CAUTION: Directly after the vehicle has been running or the engine has been long idle running, the ATF is hot. Be careful not to burn yourself.
  11. Tighten the drain plug (ATF).
    NOTE: Use a new gasket.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    Fig 2: Identifying Oil Pan And ATF Drain Plug
    G08563943Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the center exhaust pipe. (non-turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
  13. Remove the center exhaust pipe. (turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
  14. Remove the heat shield cover.
    Fig 3: Identifying Heat Shield Cover
    G05661183Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the propeller shaft. < Refer to REMOVAL , Propeller Shaft. >
  16. Place the transmission jack under the transmission.
    NOTE: Make sure that the support plate of transmission jack does not touch the cross.
  17. Remove the transmission rear crossmember bolt.
    Fig 4: Locating Transmission Rear Crossmember Mounting Bolts
    G05002527Courtesy of SUBARU OF AMERICA, INC.
  18. Lower the transmission jack.
    NOTE: Do not separate the transmission jack and transmission.
  19. Remove the ATF cooler inlet pipe and outlet pipe.
    CAUTION: When removing the ATF cooler outlet pipe, be careful not to lose the ball and spring used together with the retaining screw.
  20. Remove the front vehicle speed sensor and torque converter turbine speed sensor.

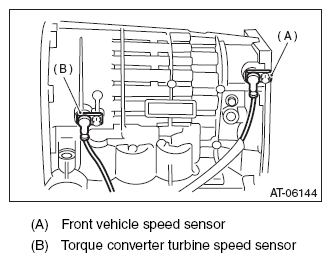

    Fig 5: Identifying Front Vehicle Speed Sensor And Torque Converter Turbine Speed Sensor
    G08563946Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the oil pan.
    CAUTION: Be careful not to allow foreign matter such as dust or dirt to enter the oil pan.
  22. Disconnect the control valve connector and transmission ground terminal.

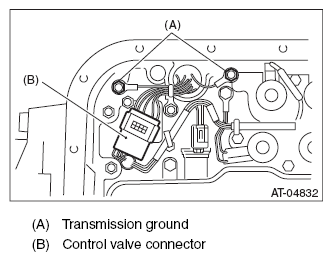

    Fig 6: Identifying Control Valve Connector And Transmission Ground Terminal
    G08563947Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the transmission harness assembly.
