Transmission Case And Control Device

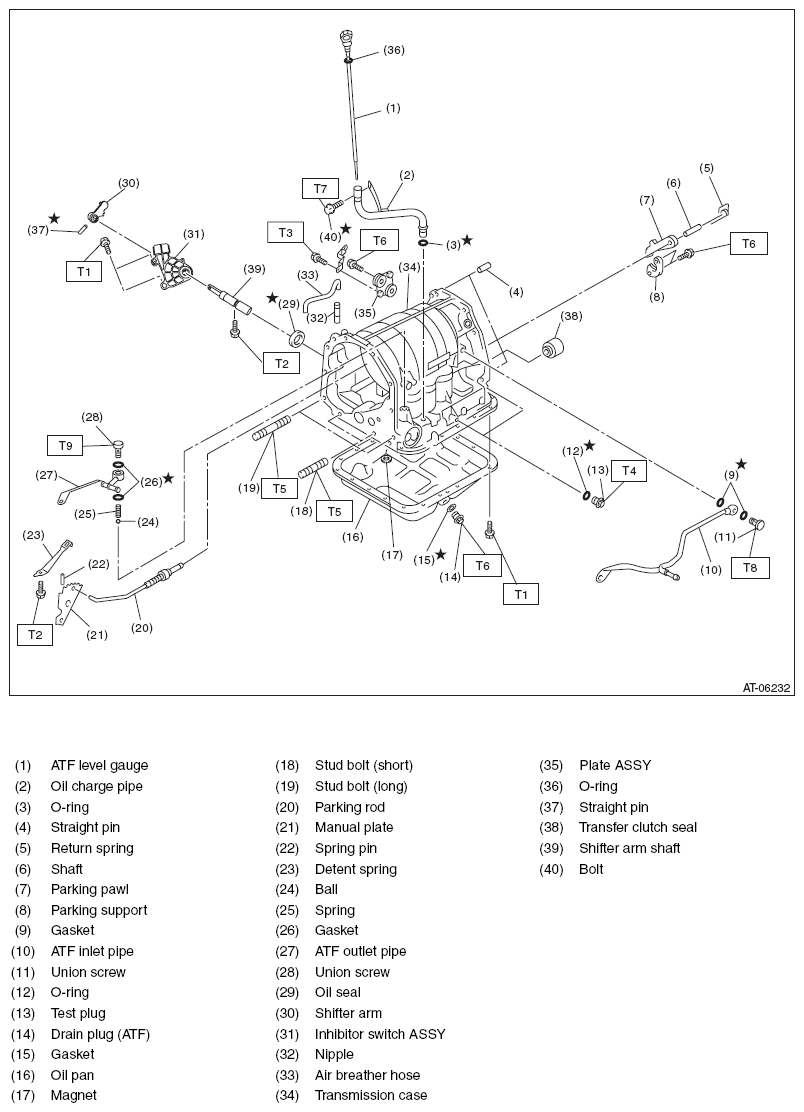

Fig 1: Exploded View Of Transmission Case And Control Device With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6 (0.6, 4.4)

T3: 12 (1.2, 8.9)

T4: 13 (1.3, 9.6)

T5: 18 (1.8, 13.3)

T6: 25 (2.5, 18.4)

T7: 38 (3.9, 28.0)

T8: 40 (4.1, 29.5)

T9: 45 (4.6, 33.2)
