Inhibitor Switch: Removal

Set the vehicle on a lift.
Set the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. (non-turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust pipe (rear). (turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
Remove the snap pin and washer from the shifter arm.

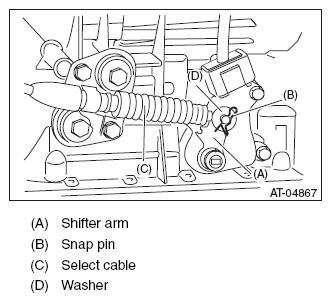

Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

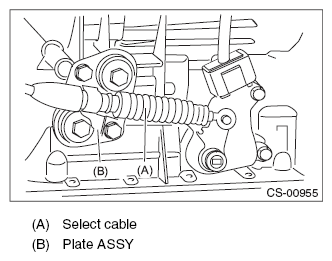

Fig 2: Identifying Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch connector from the inhibitor switch.

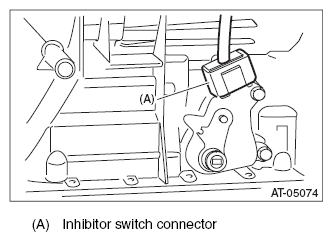

Fig 3: Identifying Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the spring pin and remove the shifter arm.
ST 398791600 REMOVER

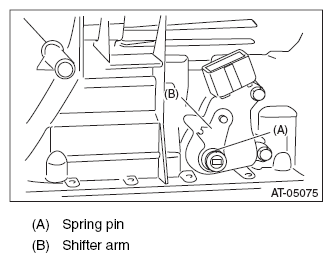

Fig 4: Removing Spring Pin And Shifter Arm Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Remove the two inhibitor switch securing bolts.

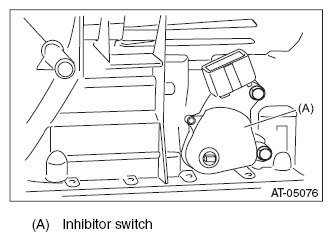

Fig 5: Identifying Inhibitor Switch Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from the transmission case.

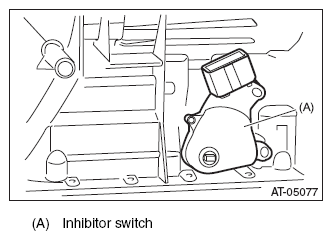

Fig 6: Identifying Transmission Case Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
