MT Gear Shift Lever: Assembly

NOTE:
  • Clean all the parts before assembly.
  • Apply grease to each part. < Refer to 5MT GEAR SHIFT LEVER , COMPONENT, General Description. >

Grease:

NIGTIGHT LYW No. 2 grease or equivalent

  1. Mount the bushing and cushion rubber to the stay.

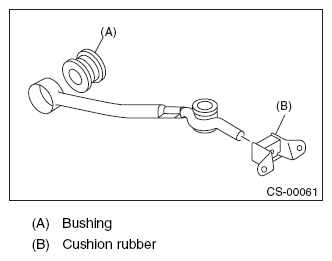

    Fig 1: Identifying Bushing And Cushion Rubber
    G08571505Courtesy of SUBARU OF AMERICA, INC.
  2. Install the bushing and spacer to boss.

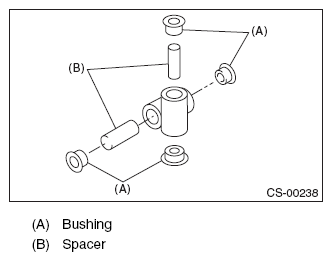

    Fig 2: Identifying Bushing And Spacer
    G08571506Courtesy of SUBARU OF AMERICA, INC.
  3. Using new self-locking nuts, install the boss to the joint.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

    Fig 3: Removing/Installing Boss From Joint
    G05002348Courtesy of SUBARU OF AMERICA, INC.
  4. Install the snap ring to gear shift lever and install the bushing.
    NOTE: Apply grease to the bushing.

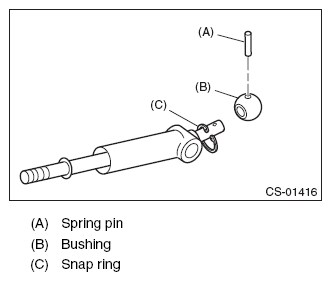

    Fig 4: Identifying Spring Pin, Bushing And Snap Ring
    G08571508Courtesy of SUBARU OF AMERICA, INC.
  5. Apply grease to the bushing and O-ring, and then install to gear shift lever.

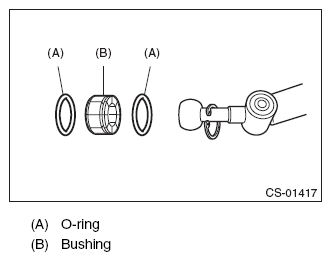

    Fig 5: Identifying O-Ring And Bushing
    G08571509Courtesy of SUBARU OF AMERICA, INC.

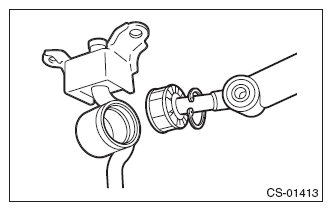

  6. Apply sufficient grease into boss, and then install the gear shift lever to the stay.
    Fig 6: Installing Gear Shift Lever To Stay
    G08540954Courtesy of SUBARU OF AMERICA, INC.
  7. Install the snap ring.

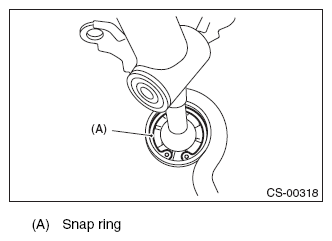

    Fig 7: Installing Snap Ring
    G08571511Courtesy of SUBARU OF AMERICA, INC.
  8. Insert the gear shift lever and rod into boot hole.
  9. Install the rod.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

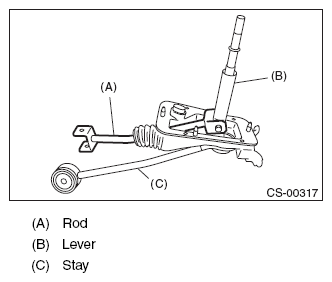

    Fig 8: Identifying Rod, Lever And Stay
    G08571512Courtesy of SUBARU OF AMERICA, INC.
  10. Install a new lock wire.

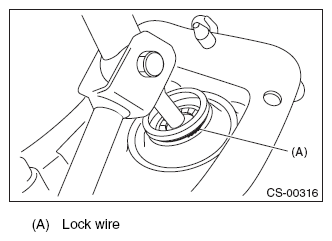

    Fig 9: Installing Lock Wire
    G08571513Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • Install the lock wire to the stay groove.
    • Bend the extra wire to the same direction of lock wire winding.

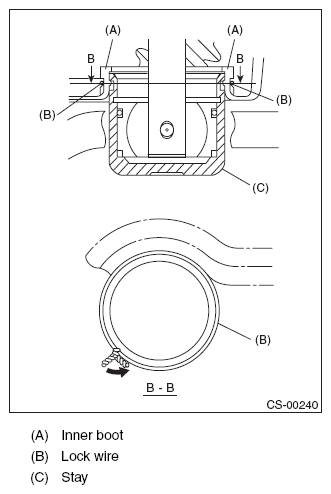

      Fig 10: Identifying Inner Boot, Stay And Bending Extra Wire To Same Direction Of Lock Wire Winding
      G08571514Courtesy of SUBARU OF AMERICA, INC.
