MT Gear Shift Lever: Installation

Install the joint to the transmission and secure with a spring pin.

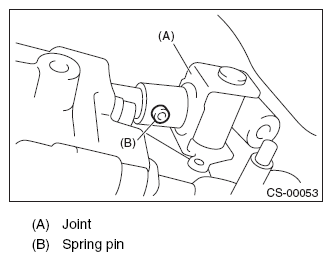

Fig 1: Identifying Spring Pin And Joint
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever from the room side.
NOTE: Insert the rod and the stay, and then temporarily set them onto the transmission mount.

Fig 2: Inserting Gear Shift Lever From Room Side
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Mount the cushion rubber on the vehicle body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

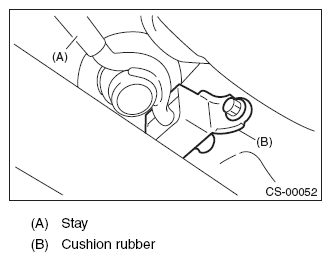

Fig 3: Identifying Stay And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, connect the rod to the joint.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

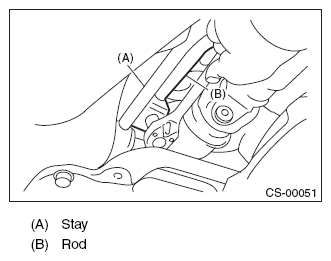

Fig 4: Identifying Stay And Rod
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, connect the stay to the transmission bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

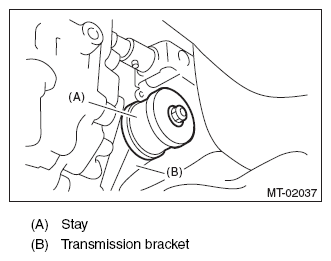

Fig 5: Identifying Transmission Bracket And Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. < Refer to INSTALLATION , Heat Shield Cover. >
Install the rear exhaust pipe and muffler. < Refer to INSTALLATION , Rear Exhaust Pipe. >
Lower the vehicle.
Install the plate COMPL to the body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
1. Set the plate COMPL to the vehicle.
2. Temporarily tighten the bolt (A).
3. Tighten the bolt (B).
4. Tighten the bolt (A).
5. Tighten the bolts (C) and (D).

  Fig 6: Identifying Plate COMPL Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Install the harness clamp to the plate.
Install the boot and insulator assembly, and secure with a clamp.

Fig 7: Identifying Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the console box. < Refer to INSTALLATION , Console Box. >
Install the console side panel and console front panel. < Refer to INSTALLATION , Center Console. >
Install the gear shift knob.
Make sure the gears can be shifted accurately into each gear.
Connect the battery ground terminal.
