Select Cable: Adjustment

Set the vehicle on a lift.
Shift the select lever to "N" range.
Lift up the vehicle.
Remove the rear exhaust pipe. (non-turbo model) < Refer to REMOVAL , Rear Exhaust Pipe. >
Remove the center exhaust pipe (rear). (turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting nuts on both sides.

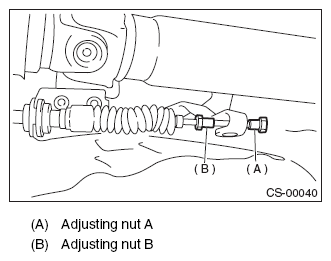

Fig 2: Identifying Adjusting Nut A And B
Courtesy of SUBARU OF AMERICA, INC.
Turn adjusting nut B until it lightly touches the connector.

Fig 3: Turning Adjusting Nut B
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

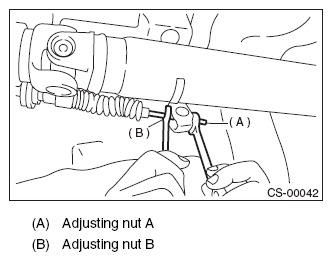

Fig 4: Tightening Adjusting Nut
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install in the reverse order of removal.
