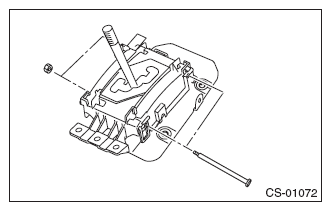

Select Lever: Disassembly

Remove the gasket and plate COMPL.

Fig 1: Identifying Gasket And Plate COMPL
Courtesy of SUBARU OF AMERICA, INC.
Insert a flat tip screwdriver with a thin tip under the connector and disconnect each connector from the plate COMPL.

Fig 2: Inserting Flat Tip Screwdriver With Thin Tip Under Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer bolt and remove the plate guide COMPL.

Fig 3: Identifying Spacer Bolt And Plate Guide COMPL
Courtesy of SUBARU OF AMERICA, INC.

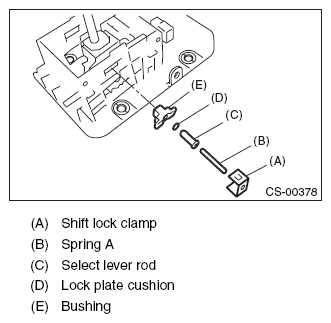

Remove the shift lock clamp, spring A, select lever rod, lock plate cushion, and bushing.

Fig 4: Identifying Shift Lock Clamp, Spring, Select Lever Rod, Lock Plate Cushion, And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring.

Fig 5: Identifying Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the solenoid unit.

Fig 6: Removing Shift Lock Solenoid Unit
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of connector.

Fig 7: Raising Claw Of Connector
Courtesy of SUBARU OF AMERICA, INC.

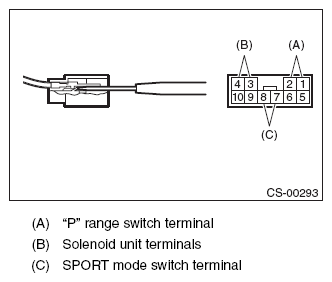

Disconnect the terminals of the SPORT mode switch, "P" range switch, and solenoid unit from the connector, using a flat tip screwdriver with a thin tip.

Fig 8: Identifying P Range Switch Terminal, Solenoid Unit Terminals And Sport Mode Switch Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the grommet.

Fig 9: Identifying Grommet
Courtesy of SUBARU OF AMERICA, INC.
Pull out the spring pin.

Fig 10: Pulling Out Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

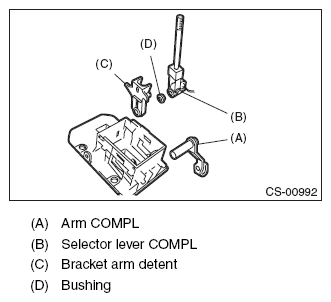

Pull out the arm COMPL, remove the select lever COMPL, and remove the bracket arm detent and bushing.

Fig 11: Identifying Arm COMPL, Select Lever COMPL, Bracket Arm Detent And Bushing
Courtesy of SUBARU OF AMERICA, INC.

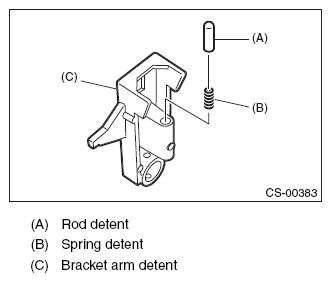

Remove the rod detent and spring detent from the bracket arm detent.

Fig 12: Identifying Rod Detent, Spring Detent And Bracket Arm Detent
Courtesy of SUBARU OF AMERICA, INC.
