Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Connecting/Disconnecting Battery Ground Terminal
    G08570271Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

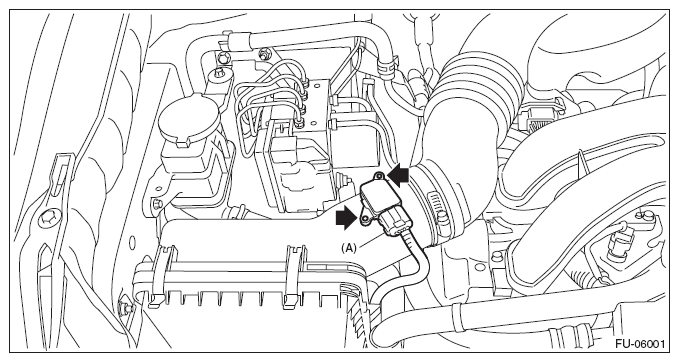

    Fig 2: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector
    G08562648Courtesy of SUBARU OF AMERICA, INC.
