Fuel Filler Pipe: Installation

Open the fuel filler lid.
Attach the fuel filler pipe gasket to the fuel filler pipe assembly, and insert the fuel filler pipe assembly from inside of the rear fender.
Install the fuel filler ring to the fuel filler pipe assembly.
NOTE: If the edges of rubber gasket are folded toward inside, straighten it with a flat tip screwdriver.

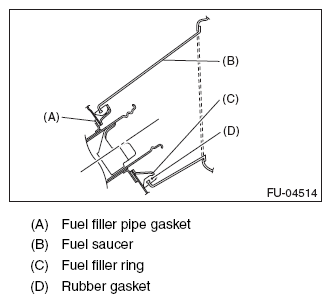

Fig 1: Identifying Fuel Filler Pipe Gasket, Fuel Saucer, Fuel Filler Ring And Rubber Gasket
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

Fig 2: Locating Fuel Filler Ring Mounting Screws
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

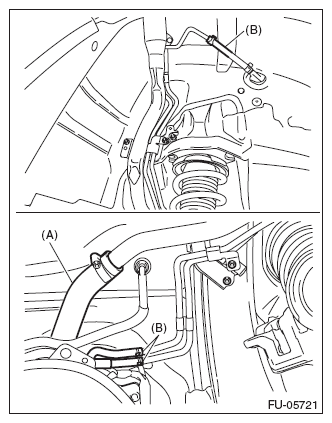

Fig 3: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

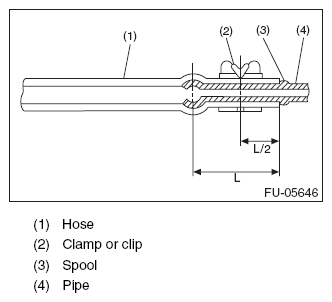

Fig 4: Identifying Fuel Filler Pipe, Hose, Clamp Or Clip, Spool And Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel filler pipe assembly to vehicle body.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 5: Locating Fuel Filler Pipe Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear sub frame. < Refer to INSTALLATION , Rear Sub Frame. >
Install the rear mud guard RH. < Refer to INSTALLATION , Mud Guard. >
Lower the vehicle.
Install the rear wheel RH.
Tightening torque:

100 N.m (10.2 kgf-m, 73.8 ft-lb)
Connect the battery ground terminal.

Fig 6: Disconnecting/Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
Perform reinitialization of the auto headlight beam leveler system. (model with auto headlight beam leveler) < Refer to PROCEDURE , Auto Headlight Beam Leveler System. >
