Intake Manifold

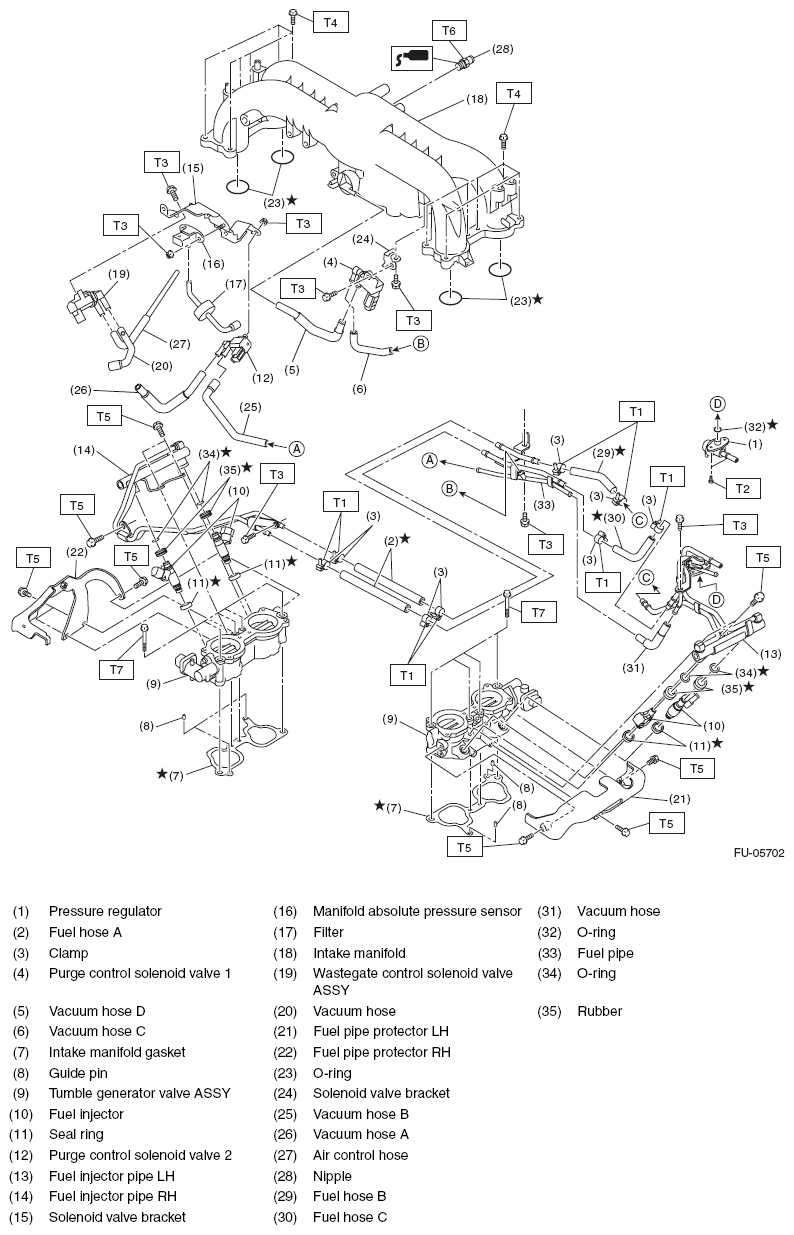

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 0.9)

T2: 3.5 (0.4, 2.6)

T3: 6.4 (0.7, 4.7)

T4: 8.3 (0.8, 6.1)

T5: 19 (1.9, 14.0)

T6: 23 (2.3, 17.0)

T7: 25 (2.5, 18.4)
