Intake Manifold: Assembly

Apply liquid gasket to the nipple threads, and install the nipple to the intake manifold.
Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or equivalent

Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

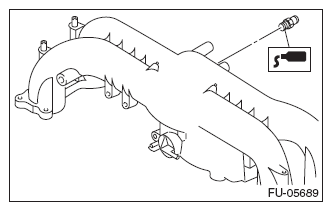

Fig 1: Applying Liquid Gasket To Nipple Threads And Nipple To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Install the tumble generator valve assembly onto intake manifold.
NOTE: Use new O-rings.

Tightening torque:

8.3 N.m (0.8 kgf-m, 6.1 ft-lb)

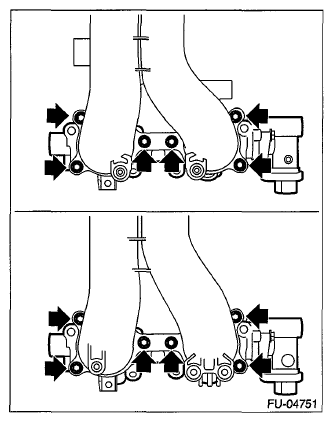

Fig 2: Locating Tumble Generator Valve Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel injector pipe.
Connect fuel hoses to the fuel injector pipe and the fuel pipe. < Refer to CONNECTING THE FUEL DELIVERY HOSE, FUEL RETURN HOSE AND FUEL HOSE , INSTALLATION, Fuel Delivery, Return and Evaporation Lines. >

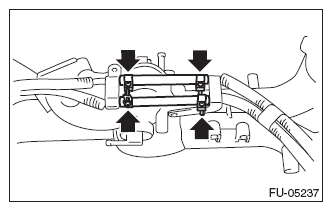

Fig 3: Locating Fuel Hose To Fuel Injector Pipe And Fuel Pipe Mounting Clamps
Courtesy of SUBARU OF AMERICA, INC.
Secure the fuel injector pipe RH to intake manifold with bolt.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

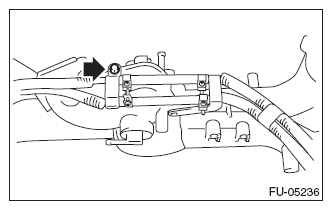

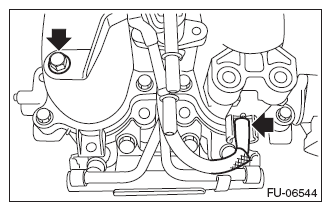

Fig 4: Locating Fuel Injector Pipe RH Bolt Of Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Secure the fuel pipe to intake manifold with bolts.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

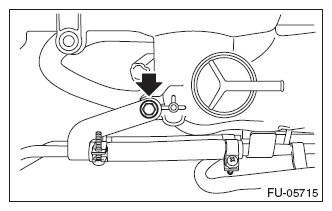

Fig 5: Identifying Locating Fuel Pipe Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel injector.
NOTE: Use new O-rings, rubbers and seal rings.
- RH side

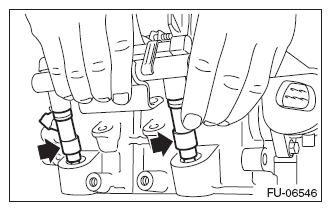

  Fig 6: Installing Fuel Injector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

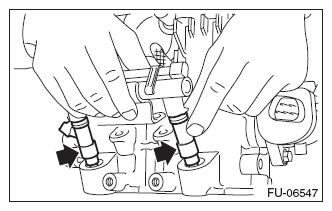

  Fig 7: Installing Fuel Injector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Secure the fuel injector pipe to intake manifold with bolts.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)
- RH side

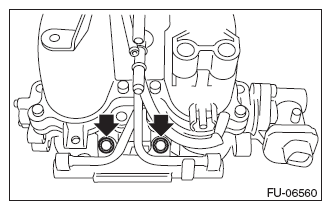

  Fig 8: Locating Fuel Injector Pipe To Intake Manifold With Bolts RH
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

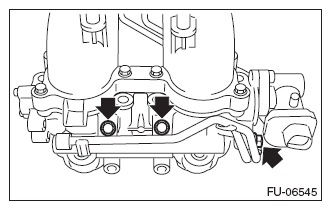

  Fig 9: Locating Fuel Injector Pipe To Intake Manifold With Bolts LH
  Courtesy of SUBARU OF AMERICA, INC.
Secure the fuel injector pipe LH to intake manifold with bolt, and connect the pressure regulator vacuum hose to the intake manifold.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 10: Locating Pressure Regulator Vacuum Hose And Fuel Injector Pipe LH Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.

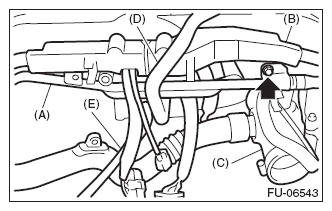

Install the PCV pipe (A), harness assembly (B), intake duct (C), brake booster vacuum hose (D) and vacuum hose (E) to the intake manifold.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 11: Identifying PCV Pipe, Harness Assembly, Intake Duct, Brake Booster And Intake Manifold Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.

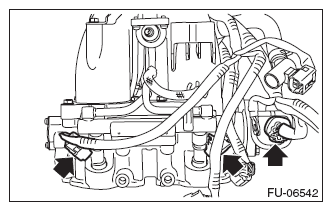

Connect the connector to the fuel injector and the tumble generator valve assembly.
- RH side

  Fig 12: Locating Fuel Injector And Tumble Generator Valve Assembly Connectors (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 13: Locating Fuel Injector And Tumble Generator Valve Assembly Connectors (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body to the intake manifold.
NOTE: Use new O-rings.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

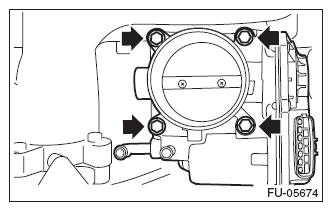

Fig 14: Locating Throttle Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the throttle position sensor.

Fig 15: Locating Throttle Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

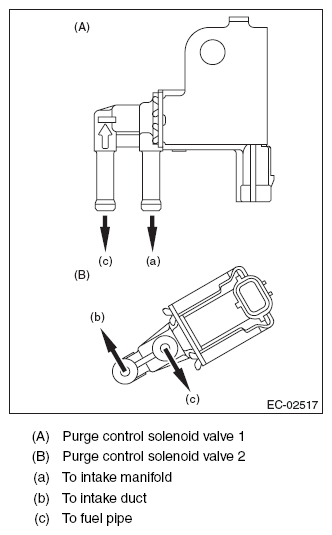

Connect the vacuum hose to the intake duct and the fuel pipe, then connect the connector to the purge control solenoid valve 2.
NOTE: Connect the vacuum hose as shown in the figure.

Fig 16: Connecting Vacuum Hose To Intake Duct And Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.

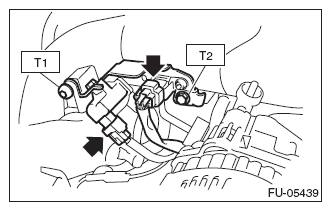

Install the solenoid valve bracket assembly to the intake manifold, and connect the connector to the wastegate control solenoid valve and the manifold absolute pressure sensor.
Tightening torque:

T1: 17 N.m (1.7 kgf-m, 12.5 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 17: Locating Solenoid Valve Bracket Assembly Connectors With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Connect the filter assembly.

Fig 18: Locating Filter Assembly
Courtesy of SUBARU OF AMERICA, INC.

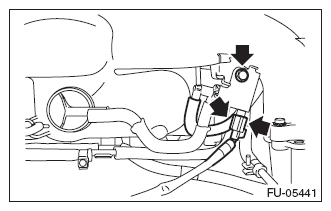

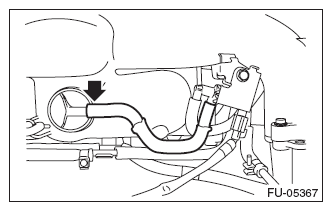

Connect the vacuum hose and the connector the fuel pipe, and install the purge control solenoid valve 1 to the intake manifold.
NOTE: Connect the vacuum hose as shown in the figure.

Fig 19: Connecting Vacuum Hose And The Connector The Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 20: Installing Purge Control Solenoid Valve 1 To The Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Connect the vacuum hose to the intake manifold.
NOTE: Connect the vacuum hose as shown in the figure.

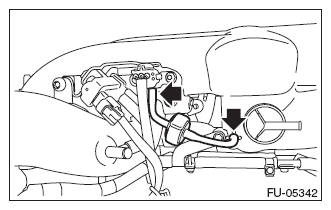

Fig 21: Connecting Vacuum Hose To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

Fig 22: Locating Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe protector LH to the intake manifold, and install the engine ground terminal to the fuel pipe protector LH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

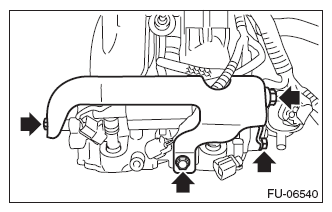

Fig 23: Locating Fuel Pipe Protector LH Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe protector RH to the intake manifold.

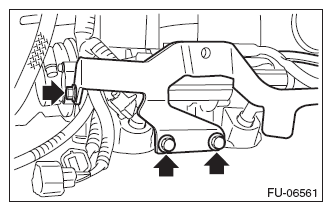

Fig 24: Locating Fuel Pipe Protector RH Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)
