RH Side

Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Disconnecting/Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
Remove the fuel pipe protector RH from the intake manifold.

Fig 2: Locating Fuel Pipe Protector RH Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

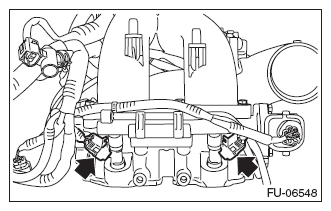

Fig 3: Locating Fuel Injector Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds fuel injector pipe RH onto intake manifold.

Fig 4: Locating Fuel Injector Pipe RH Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

Fig 5: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
