General Information: Note: Note: Towing
Avoid towing vehicles except when the vehicle cannot be driven. For models with AWD, CVT, AT or VTD, use a loader instead of towing. When towing other vehicles, pay attention to the following to prevent hook or vehicle damage resulting from excessive weight.
- Do not tow other vehicles with a front tie-down hook.
- Make sure the vehicle towing is heavier than the vehicle being towed.
- When towing the vehicle equipped with Subaru EyeSight with the engine running, be sure to hold down the pre-collision brake OFF switch to turn OFF the pre-collision brake function. (Check that the pre-collision brake OFF indicator light in the meter lights up.)

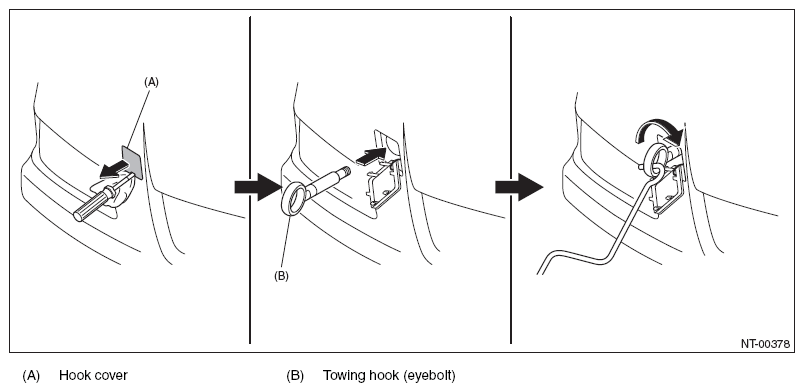

- Front
Remove the hook cover, and install the towing hook.

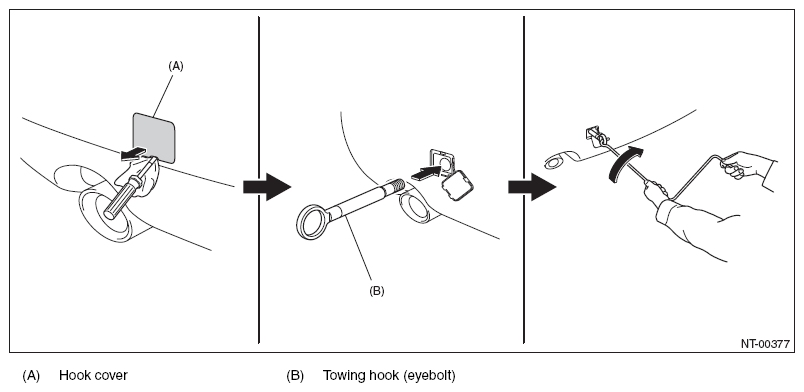

- Rear
Remove the hook cover, and install the towing hook
- Precautions
Towing Precautions MT AT, CVT Lifting up four wheels (On a trailer) Towing the vehicle after lifting up all four wheels is a basic rule for AWD model. ◦ ◦ Rope - Check if both front and rear wheels are rotated normally.
- AT and CVT models driving conditions: Driving speed of 30 km/h (19 MPH) or less Allow driving distance 50 km (31 miles) or less
◦ Δ Raising the front wheels Prohibited for full-time AWD model. X X Lifting up the front wheels - Prohibited, due to damage on bumper, front grille, etc.
- Do not raise the vehicle with bumper.
X X Marked ◦ : OK, Marked X : Prohibited, Marked Δ: Conditionally OK.
CAUTION:
- Place the shift lever in "N" position during towing.
- Do not lift up the rear wheels to avoid unsteady rotation.
- Turn the ignition key to "ACC", then check the steering wheel moves freely. (Models without the keyless access with push button start system)
- Release the parking brake to avoid tire dragging.
- Since the power steering does not work, be careful for the heavy steering effort. (When engine is stopped)
- Since the servo brake does not work, be careful that the brake is not applied effectively. (When engine is stopped)
- In case of the malfunction of internal transmission or drive system, lift up four wheels (on a trailer) for towing.
- Do not use towing hook (eye bolt) except when towing.
- Make sure to detach the towing hook (eye bolt) after towing. If it remains attached, airbag may not operate properly when receiving a shock. And it may also affect the crash performance of the vehicle.
