Control Module

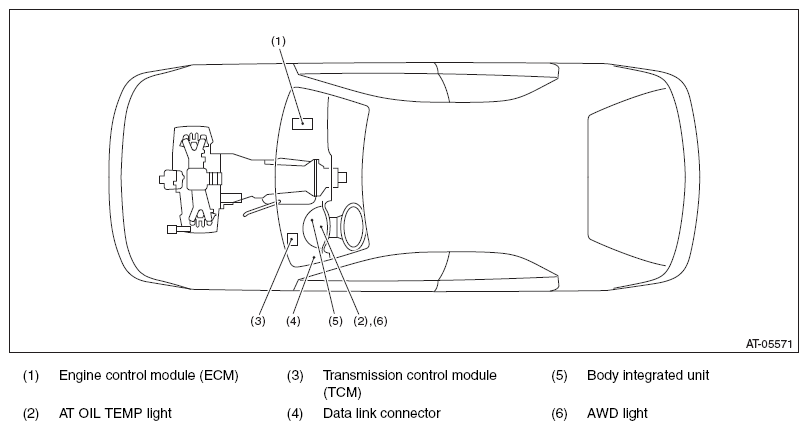

Fig 1: Control Module Electrical Component Location (1 Of 2)
G08579082Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Control Module Electrical Component Location (2 Of 2)
G08579442Courtesy of SUBARU OF AMERICA, INC.
