Crankshaft Position Sensor (Method With Oscilloscope)

Connect the probe to ECM connector.

Fig 1: Identifying ECM Harness Connectors

Courtesy of SUBARU OF AMERICA, INC.

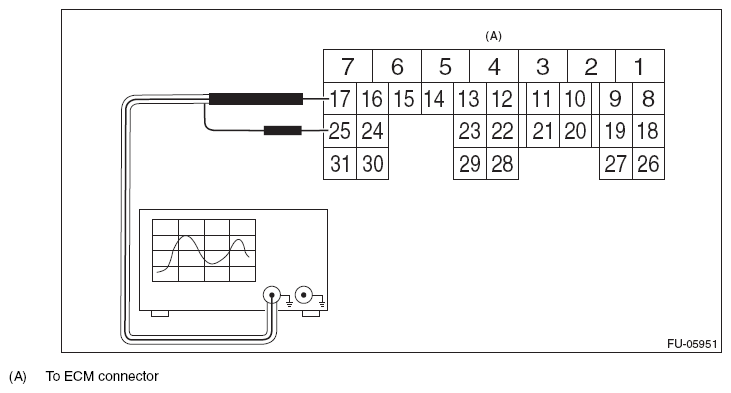

Fig 2: Measuring Voltage Between ECM Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Probe
16	+
27	-

Start the engine and let it idle.
Check the pattern is the same as the waveform and voltage shown below.

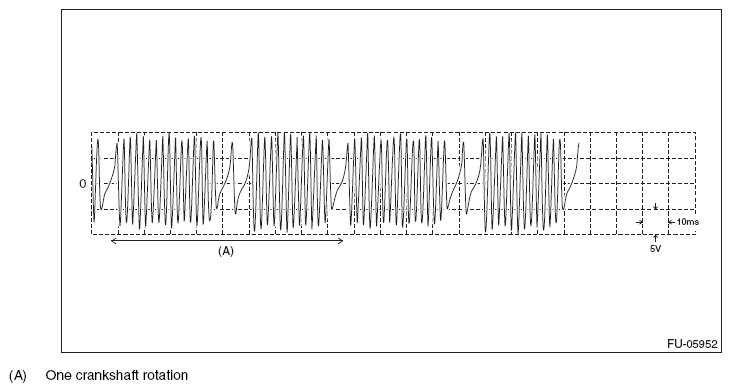

Fig 3: Crankshaft Position Sensor Output Waveform
Courtesy of SUBARU OF AMERICA, INC.
After inspection, install the related parts in the reverse order of removal.
