Universal Joint: Removal

  1. Adjust the tilt position of the steering column to the lowest position and lock the tilt lever.
    Fig 1: Adjusting Steering Column Tilt Position
    G08583674Courtesy of SUBARU OF AMERICA, INC.
  2. Prevent the steering wheel from turning using the seat belt.

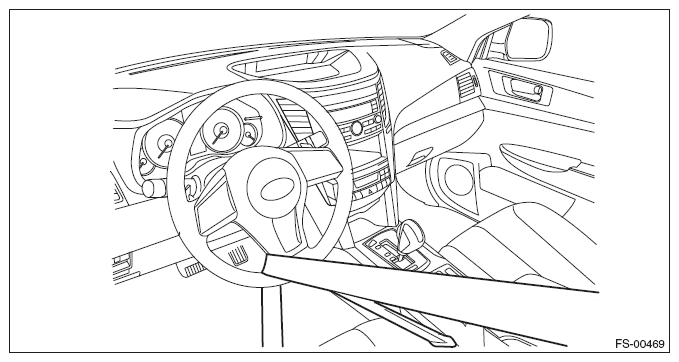

    Fig 2: Preventing Steering Wheel Turning Using Seat Belt
    G08583675Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the universal joint.
    1. Place alignment marks on universal joint.
    2. Remove the universal joint bolt and remove the universal joint.
      Fig 3: Locating Universal Joint Bolts
      G07914300Courtesy of SUBARU OF AMERICA, INC.
