Converter Case: Assembly

Install the oil drain plug.
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)
Install the overflow drain plug.
NOTE: Overflow plug of differential gear oil is temporarily attached.
Install all plugs.
NOTE: Use new O-rings.

Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 25.5 N.m (2.6 kgf-m, 18.8 ft-lb)

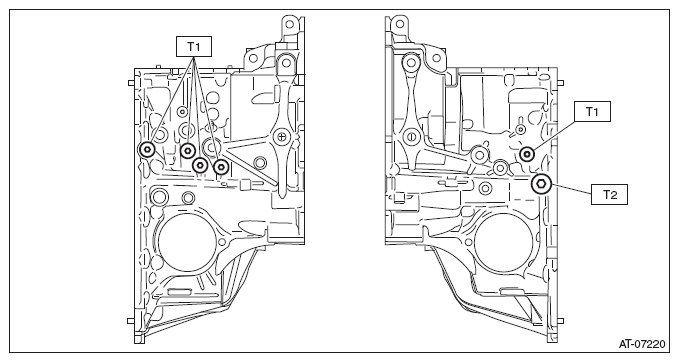

Fig 1: Oil Drain Plugs And Overflow Drain Plugs With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission hanger and transmission radio ground cord.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
