Converter Case: Disassembly

  1. Remove the transmission hanger and transmission radio ground cord, if mounted.
  2. Remove the filler plug, oil drain plug and overflow drain plug. Refer to REPLACEMENT .
  3. Remove all plugs.

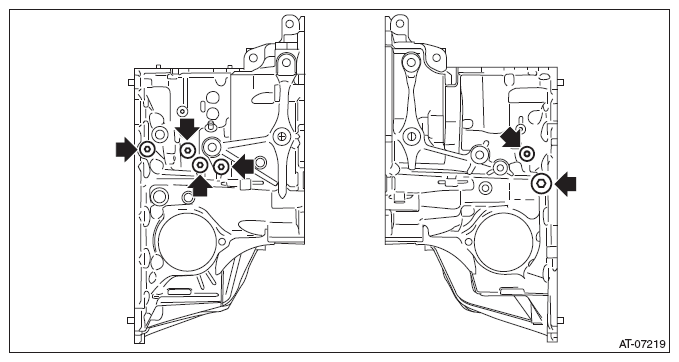

    Fig 1: Locating Filler Plug, Oil Drain Plug And Overflow Drain Plug
    G08579077Courtesy of SUBARU OF AMERICA, INC.
