Differential Gear Oil: Replacement

CAUTION:

Immediately after the vehicle has been running or after idling for a long time, the differential gear oil will be hot. Be careful not to burn yourself.
Be careful not to spill differential gear oil on the exhaust pipe to prevent it from emitting smoke or causing a fire. If gear oil adheres, wipe it off completely.

Lift up the vehicle.
Remove the differential gear oil drain plug using TORX® bit T70. Drain differential gear oil.
Install the differential gear oil drain plug using TORX® bit T70.
NOTE: Use a new gasket.

Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)

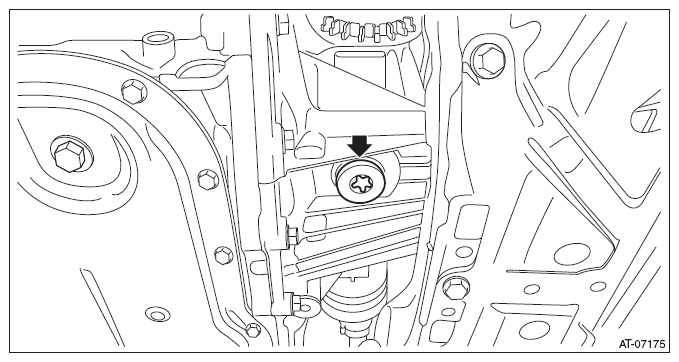

Fig 1: Locating Differential Gear Oil Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the filler plug.

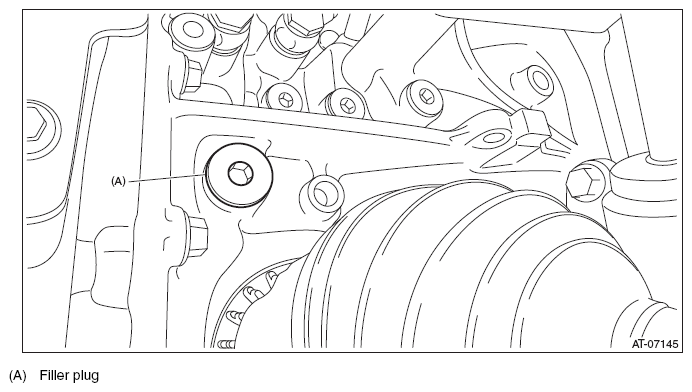

Fig 2: Identifying Filler Plug
Courtesy of SUBARU OF AMERICA, INC.
Pour gear oil into the filler plug hole.
Recommended gear oil:

Refer to RECOMMENDED GEAR OIL .

Gear oil capacity:

Refer to RECOMMENDED GEAR OIL .

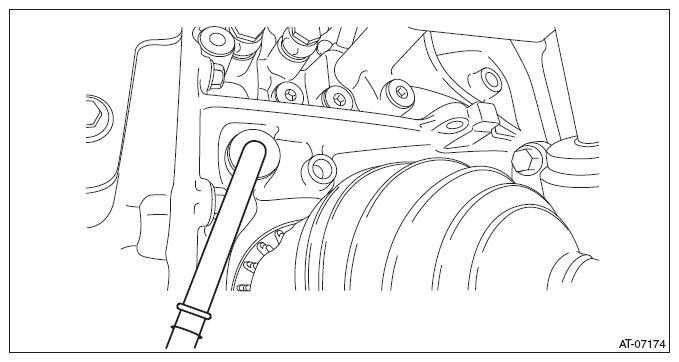

Fig 3: Filling Gear Oil Into Filler Plug Hole
Courtesy of SUBARU OF AMERICA, INC.
Adjust the level of differential gear oil. Refer to ADJUSTMENT .
