Drive Pinion Shaft Assembly: Inspection

• Make sure that all component parts are free of scratches, holes and other faults.
• Check the tooth contact. Refer to ADJUSTMENT .
• Apply CVTF to bearing and rotate the bearing to check for noise or dragging etc.
• Check the starting torque of drive pinion shaft.

ST1 498937110 HOLDER

ST2 499787700 WRENCH

Starting torque:

5.1 - 17.1 N (0.5 - 1.7 kgf, 1.1 - 3.8 lbf)

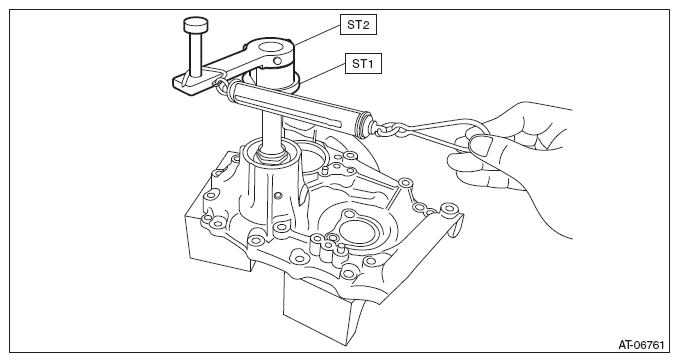

Fig 1: Checking Starting Torque Of Drive Pinion Shaft Using Special Tools

Courtesy of SUBARU OF AMERICA, INC.
