Drive Plate: Removal

  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL .
  2. Set the ST.

    ST 498497300 CRANKSHAFT STOPPER

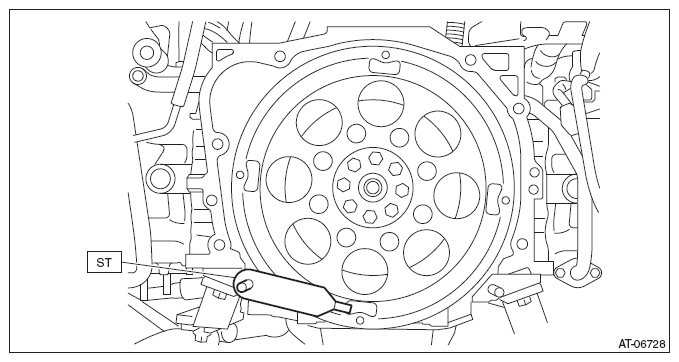

    Fig 1: Removing Drive Plate Using Crankshaft Stopper
    G08317884Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
