Forward Clutch Assembly: Installation

  1. Install the thrust bearing to the converter case.
    NOTE: Face the temper color surface to the converter case side.
    Fig 1: Installing Thrust Bearing To Converter Case
    G08318053Courtesy of SUBARU OF AMERICA, INC.
  2. Install the seal ring to the input shaft.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.
    • Apply CVTF to the seal rings.

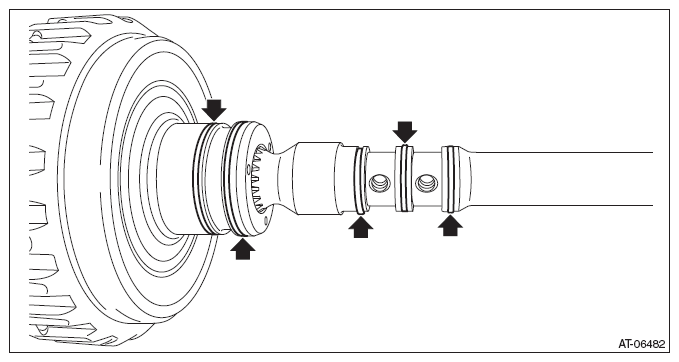

      Fig 2: Locating Input Shaft Seal Rings
      G08318054Courtesy of SUBARU OF AMERICA, INC.
  3. Install the forward clutch assembly to the converter case.
    Fig 3: Identifying Forward Clutch Assembly
    G08318051Courtesy of SUBARU OF AMERICA, INC.
  4. Install the sun gear.
    NOTE: Face the end face of the sun gear to the reverse brake side as shown in the figure.
    Fig 4: Identifying Sun Gear End Face Installation Position
    G08318056Courtesy of SUBARU OF AMERICA, INC.
  5. Install the thrust bearing to the sun gear.
    NOTE: Face the temper color surface to the reverse brake side.

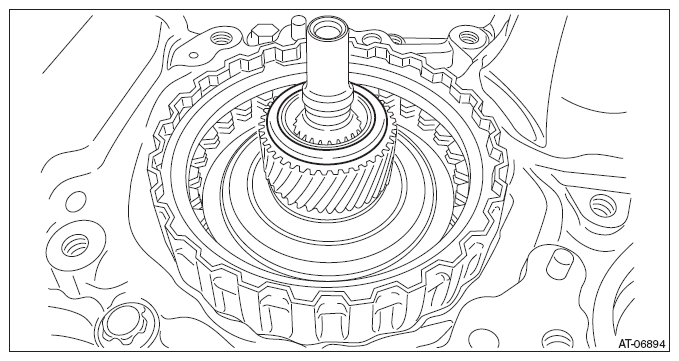

    Fig 5: Identifying Thrust Bearing On Sun Gear
    G08318057Courtesy of SUBARU OF AMERICA, INC.
  6. Install the planetary carrier.
    Fig 6: Identifying Planetary Carrier
    G08318049Courtesy of SUBARU OF AMERICA, INC.
  7. Install the thrust bearing.
    NOTE: Face the temper color surface to the reverse brake side.
    Fig 7: Identifying Thrust Bearing
    G08318048Courtesy of SUBARU OF AMERICA, INC.
  8. Install the internal gear.

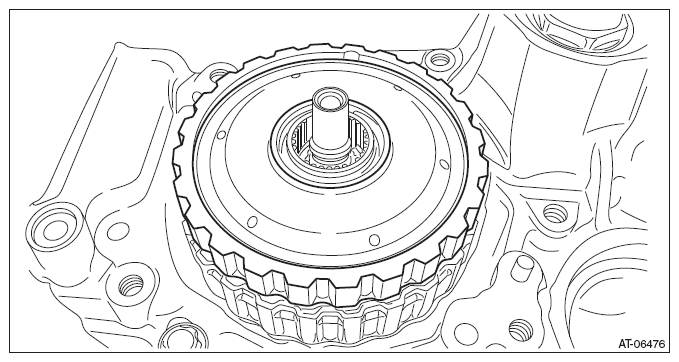

    Fig 8: Identifying Internal Gear
    G08318047Courtesy of SUBARU OF AMERICA, INC.
  9. Install the thrust bearing to the internal gear.
    NOTE: Face the temper color surface to the reverse brake side.
    Fig 9: Identifying Thrust Bearing On Internal Gear
    G08318061Courtesy of SUBARU OF AMERICA, INC.
  10. Select a washer. Refer to ADJUSTMENT .
  11. Install the reverse brake assembly. Refer to INSTALLATION .
  12. Install the primary pulley, secondary pulley and variator chain. Refer to INSTALLATION .
  13. Install the reduction drive gear. Refer to INSTALLATION .
  14. Install the transmission case. Refer to INSTALLATION .
  15. Install the transmission control device. Refer to INSTALLATION .
  16. Install the oil strainer and oil pan. Refer to INSTALLATION .
  17. Install the reduction driven gear assembly. Refer to INSTALLATION .
  18. Install the transfer driven gear assembly. Refer to INSTALLATION .
  19. Install the transfer clutch assembly. Refer to INSTALLATION .
  20. Install the parking pawl. Refer to INSTALLATION .
  21. Install the extension case. Refer to INSTALLATION .
  22. Install the inhibitor switch. Refer to INSTALLATION .
  23. Install the secondary speed sensor. Refer to INSTALLATION .
  24. Install the primary speed sensor. Refer to INSTALLATION .
  25. Install the turbine speed sensor. Refer to INSTALLATION .
  26. Install the transmission harness. Refer to INSTALLATION .
  27. Install the control valve body. Refer to INSTALLATION .
  28. Install the air breather hose. Refer to INSTALLATION .
  29. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
