Front Differential Gear

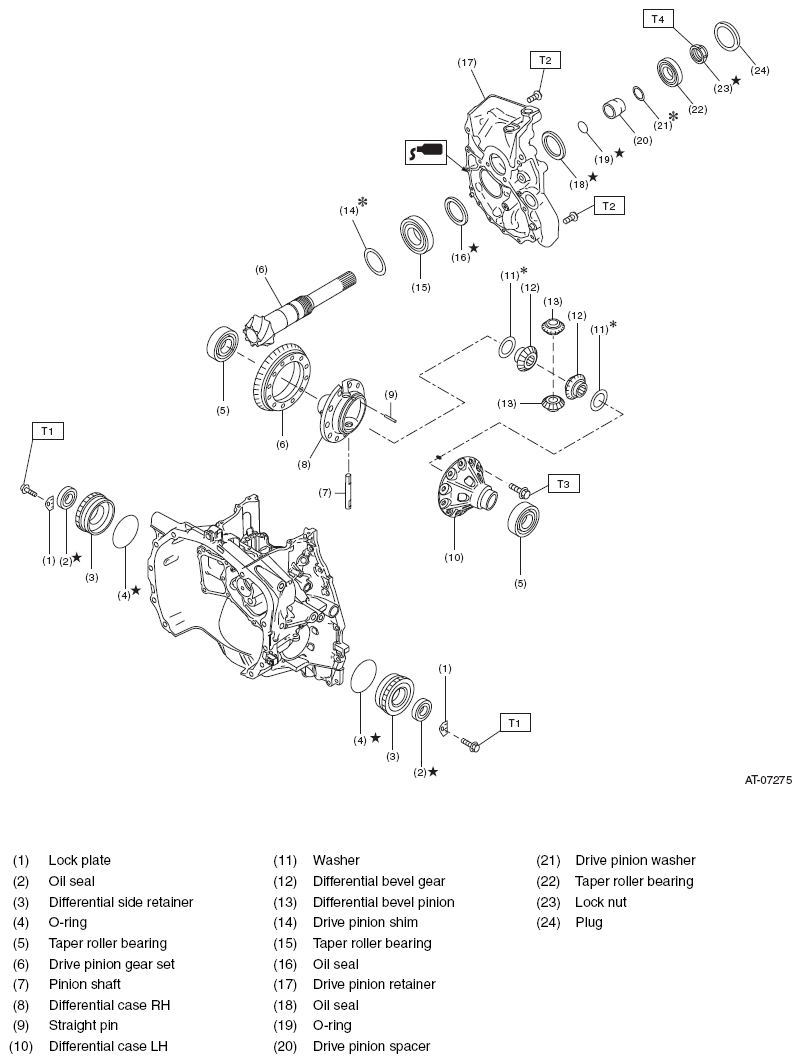

Fig 1: Front Differential Gear Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 43 (4.4, 31.7)

T3: 64 (6.5, 47.2)

T4: Refer to  ASSEMBLY  .
