Transfer And Extension Case

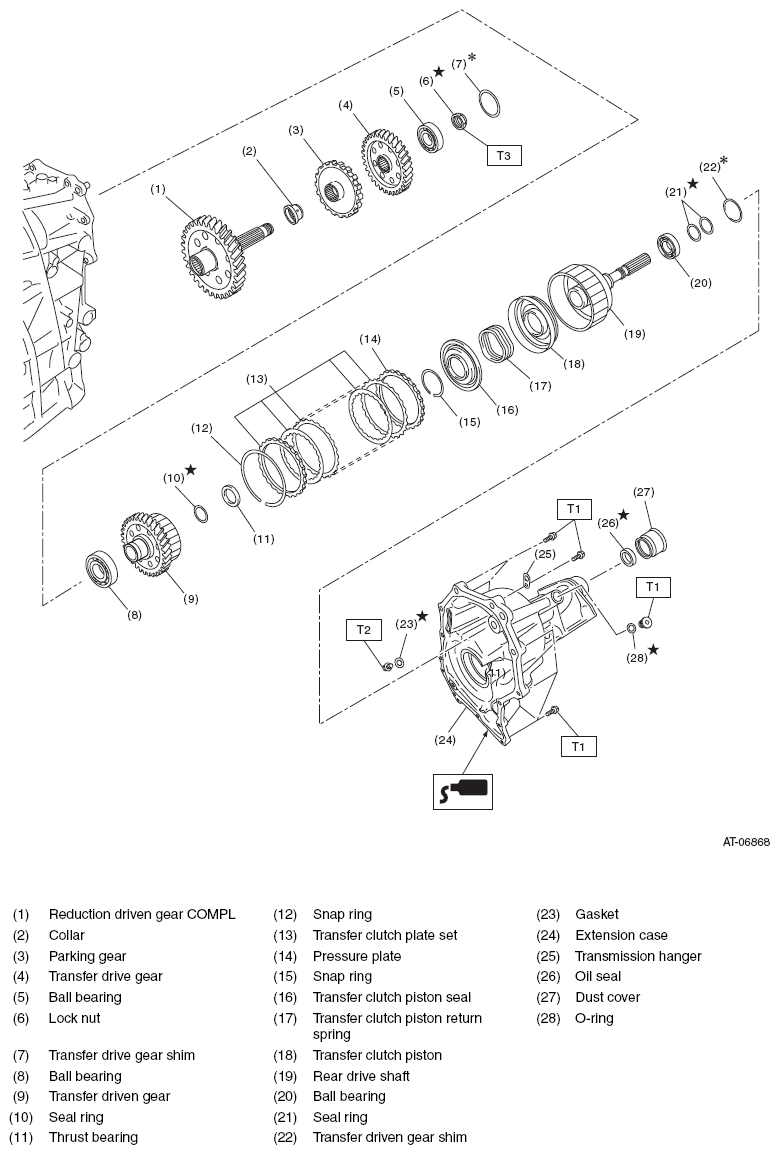

Fig 1: Transfer And Extension Case Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 35 (3.6, 25.8)

T3: 95 (9.7, 70.1)
