Inhibitor Switch: Installation

Install the inhibitor switch to the transmission case temporarily.

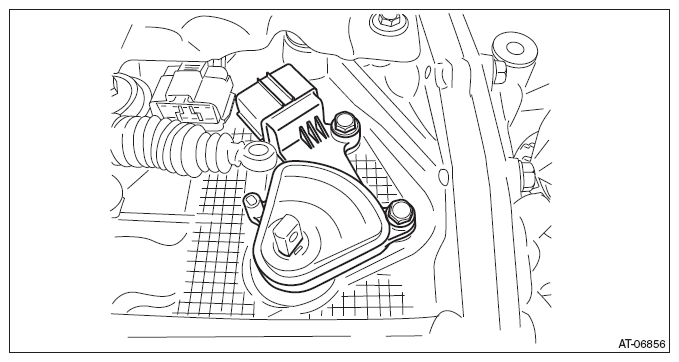

Fig 1: Identifying Inhibitor Switch With Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor harness connector to the inhibitor switch.
Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

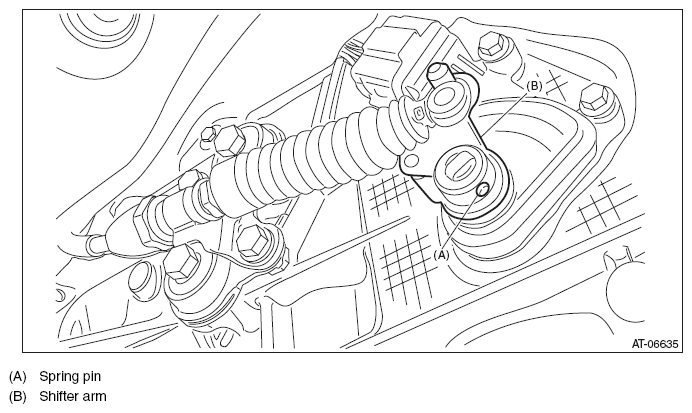

Fig 2: Identifying Shifter Arm And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Shift the shifter arm to "N" range.
Install the ST vertically in the cutout of shifter arm and the hole of switch body.
ST 499267300 STOPPER PIN

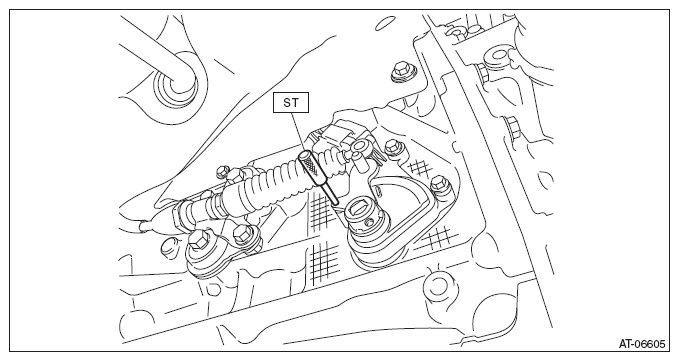

Fig 3: Installing Stopper Pin In Cutout Of Shifter Arm And Hole Of Switch Body
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the select cable to the shifter arm.
Install the washer and snap pin to the shifter arm.

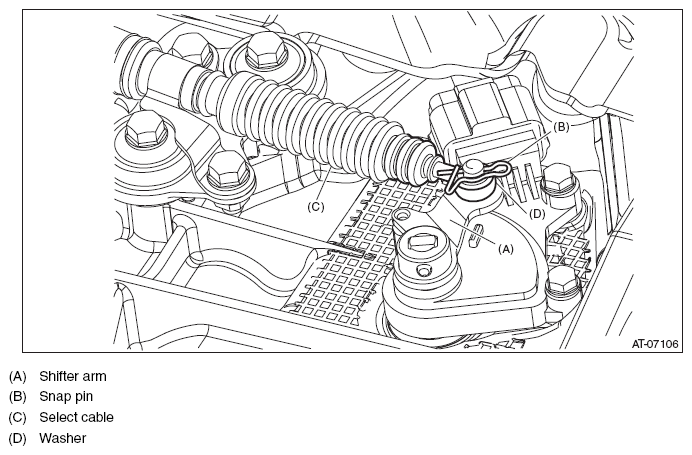

Fig 4: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Refer to INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal.
Check the inhibitor switch. Refer to INSPECTION .
