Inhibitor Switch: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. Refer to REMOVAL .
Remove the snap pin and washer from the shifter arm.

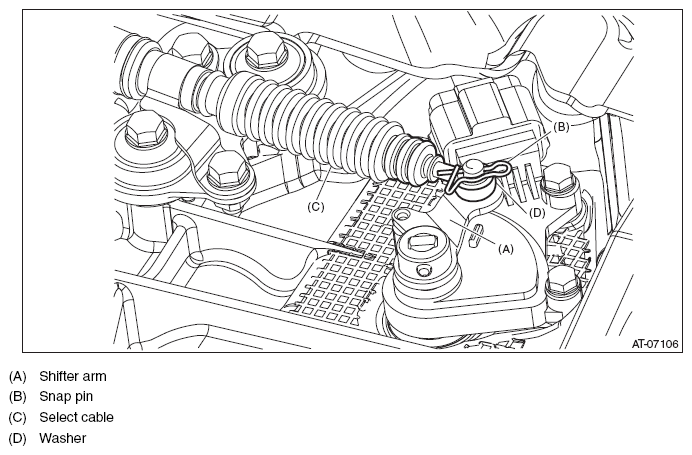

Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin and shifter arm.

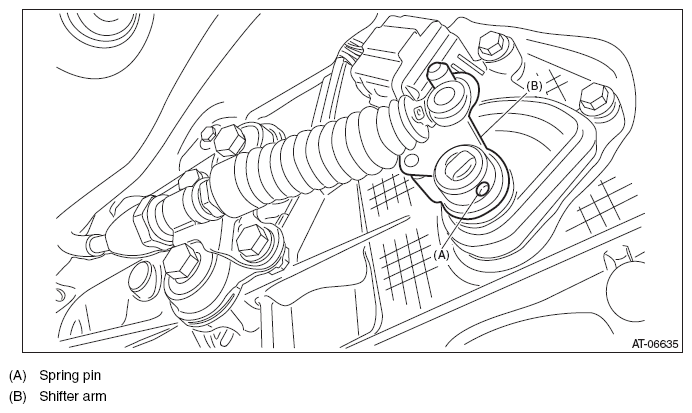

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor harness connector from inhibitor switch.
Remove the two inhibitor switch securing bolts.

Fig 3: Identifying Inhibitor Switch With Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from the transmission case.
