Oil Pump: Installation

Install the O-ring.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.

  Fig 1: Identifying Oil Pump O-Rings
  Courtesy of SUBARU OF AMERICA, INC.
Install the plate and the oil pump.
NOTE: Apply CVTF to the bolt.

Tightening torque:

8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

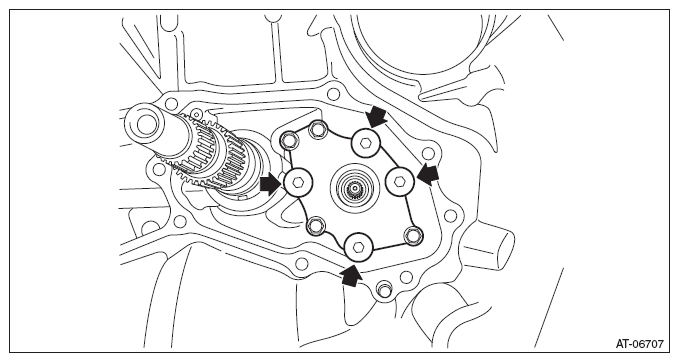

Fig 2: Locating Oil Pump And Plate Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump chain cover. Refer to INSTALLATION .
Install the torque converter assembly. Refer to INSTALLATION .
Install the transmission assembly to the vehicle. Refer to INSTALLATION .
