Preparation for Overhaul: Procedure

Clean the transmission exterior.
Attach the ST on the transmission.
ST 18632AA000 STAND ASSY

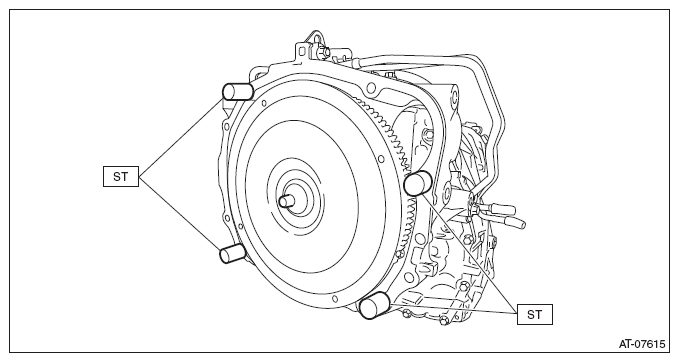

Fig 1: Connecting Stand Assembly On Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the torque converter assembly. Refer to TORQUE CONVERTER ASSEMBLY .

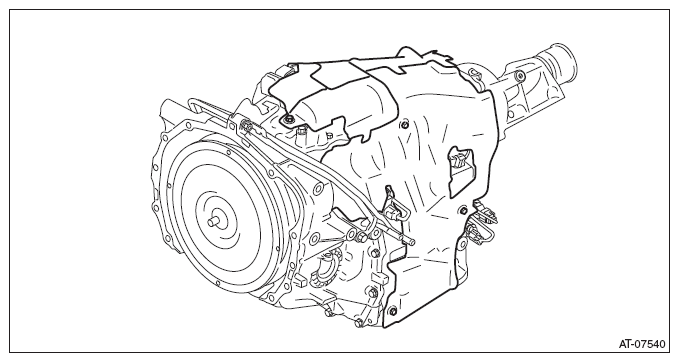

Remove the transmission case cover on the transmission upper side.
NOTE: Install using the following tightening torque.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 2: Identifying Transmission Case Cover
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Finally, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Refer to HYDRAULIC CONTROL AND LUBRICATION .

NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

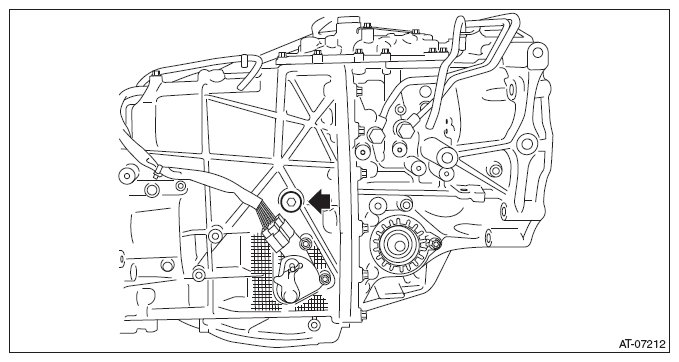

Fig 3: Locating Transmission Right Side Plug
Courtesy of SUBARU OF AMERICA, INC.
