Primary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.

Remove the transmission assembly. Refer to REMOVAL .
Remove the primary speed sensor.

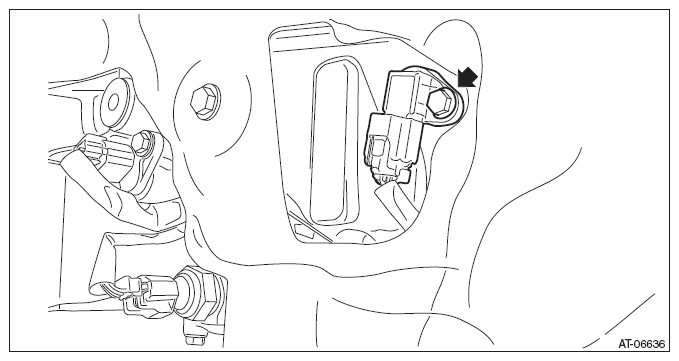

Fig 1: Locating Primary Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connector from primary speed sensor.

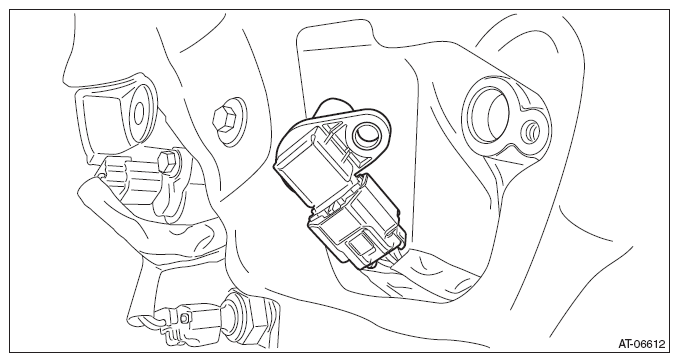

Fig 2: Identifying Primary Speed Sensor Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
