Reduction Driven Gear: Installation

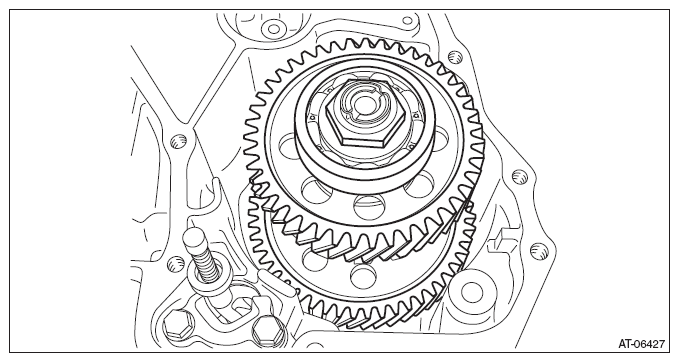

- Install the reduction driven gear assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Select the transfer drive gear shim. Refer to
ADJUSTMENT .
- Install the parking pawl. Refer to
INSTALLATION .
- Attach the selected transfer drive gear shim to extension case with vaseline.
- Install the transfer driven gear assembly. Refer to
INSTALLATION .
- Install the transfer clutch assembly. Refer to
INSTALLATION .
- Install the extension case. Refer to
INSTALLATION .
- Install the transmission assembly to the vehicle. Refer to
INSTALLATION .
