Reverse Brake Assembly: Removal

CAUTION: The specifications of following parts vary depending on transmission serial No. When replacing the following parts, be sure to check the serial number before replacing.
  • Reverse brake housing and bolt
Transmission serial No. 101281 earlier 342794 earlier 101282 later 342795 later
Reverse brake housing 31654AA000 31654AA001
Bolt 800110240 x 4
800110360 x 2		 010410400 x 6
  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove the air breather hose. Refer to REMOVAL .
  3. Remove the control valve body. Refer to REMOVAL .
  4. Remove the transmission harness. Refer to REMOVAL .
  5. Remove the turbine speed sensor. Refer to REMOVAL .
  6. Remove the secondary speed sensor. Refer to REMOVAL .
  7. Remove the primary speed sensor. Refer to REMOVAL .
  8. Remove the inhibitor switch. Refer to REMOVAL .
  9. Remove the extension case. Refer to REMOVAL .
  10. Remove the transfer clutch assembly. Refer to REMOVAL .
  11. Remove the transfer driven gear assembly. Refer to REMOVAL .
  12. Remove the parking pawl. Refer to REMOVAL .
  13. Remove the reduction driven gear assembly. Refer to REMOVAL .
  14. Remove the oil pan and oil strainer. Refer to REMOVAL .
  15. Remove the transmission control device. Refer to REMOVAL .
  16. Remove the transmission case. Refer to REMOVAL .
  17. Remove the reduction drive gear. Refer to REMOVAL .
  18. Remove the primary pulley, secondary pulley and variator chain. Refer to REMOVAL .
  19. Remove the manual valve assembly.
    Fig 1: Locating Manual Valve Assembly Mounting Bolts
    G08318020Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the oil guide and lubrication pipe.

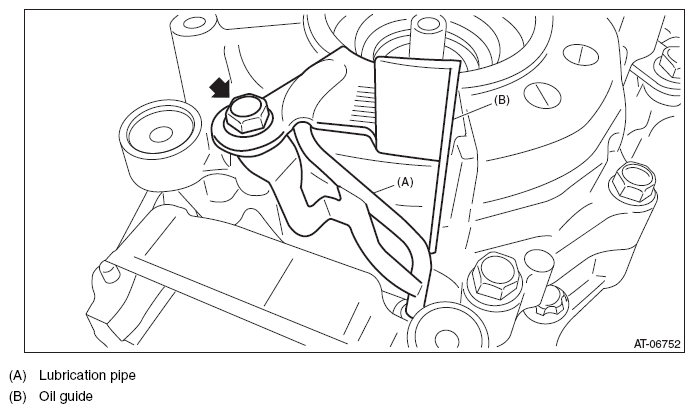

    Fig 2: Locating Oil Guide And Lubrication Pipe Mounting Bolt
    G08578913Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the O-ring from lubrication pipe.
    Fig 3: Locating Lubrication Pipe O-Ring
    G08318022Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the reverse brake assembly.

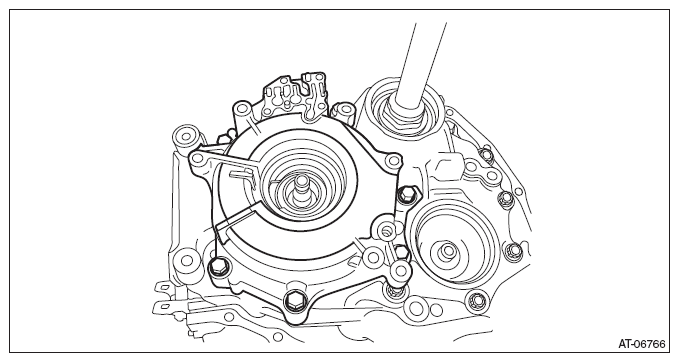

    Fig 4: Identifying Reverse Brake Assembly And Mounting Bolts
    G08318023Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the O-ring.
    Fig 5: Locating O-Rings On Reverse Brake Assembly
    G08318024Courtesy of SUBARU OF AMERICA, INC.
