Transfer Driven Gear: Installation

  1. Install the transfer driven gear assembly.

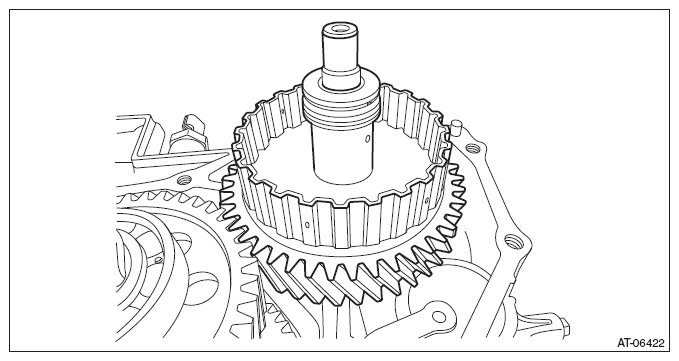

    Fig 1: Identifying Transfer Driven Gear Assembly
    G08317923Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch assembly. Refer to INSTALLATION .
  3. Select the transfer driven gear shim. Refer to ADJUSTMENT .
  4. Install the extension case. Refer to INSTALLATION .
  5. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
