Transmission Case: Assembly

Face the O-ring side of the CVTF filter to the transmission case side, and install the CVTF filter.
NOTE: Apply CVTF to the O-ring of CVTF filter.

Fig 1: Removing/Installing CVTF Filter
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF filter cover and gasket.
NOTE: Use a new gasket.

Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

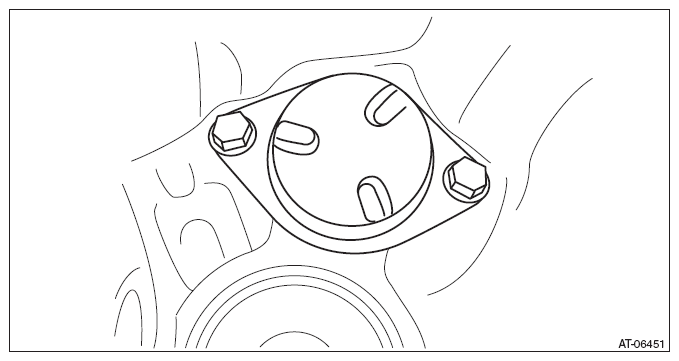

Fig 2: Identifying CVTF Filter Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- Apply CVTF to the oil seal lip and press-fitting surface.
ST 18657AA000 INSTALLER

Fig 3: Installing Oil Seal Using Installer
Courtesy of SUBARU OF AMERICA, INC.
Install all plugs.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
- For the plug (A), fill the CVTF, and then tighten the plug (A) using a new O-ring.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

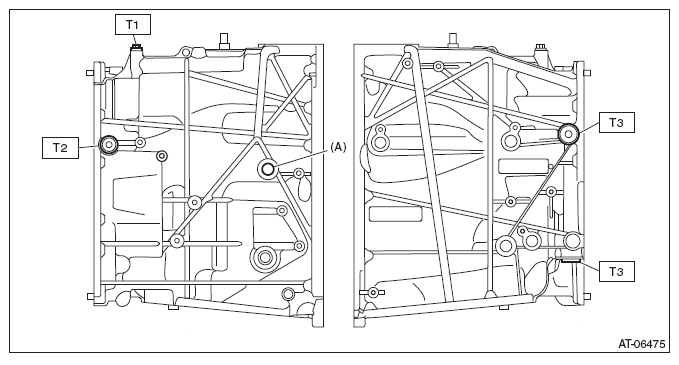

Fig 4: CVTF Plugs With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Install the oil stopper plate.
NOTE: Use a new bolt.

Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

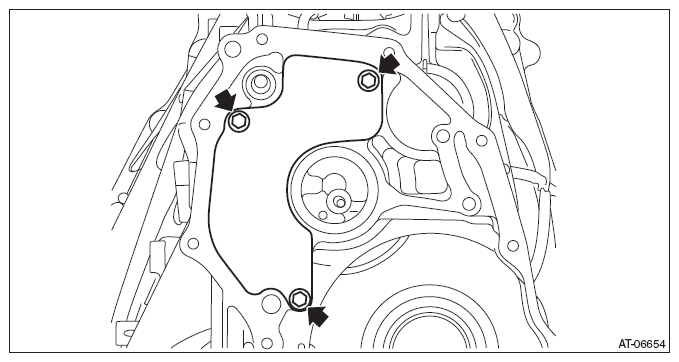

Fig 5: Locating Oil Stopper Plate Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
