Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

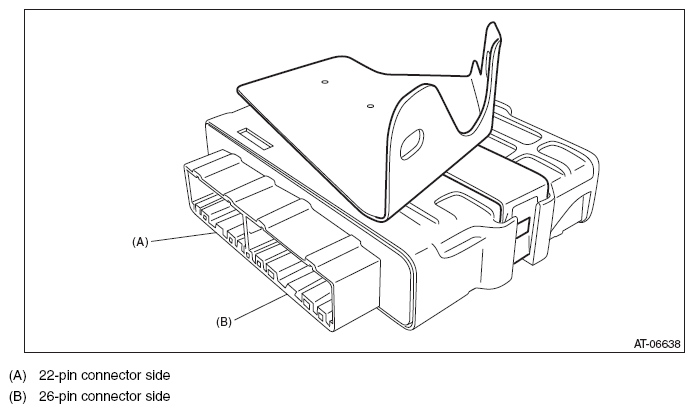

Fig 1: Identifying TCM 22-Pin And 26-Pin Connector Side Terminals
Courtesy of SUBARU OF AMERICA, INC.
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Identifying TCM And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
Install the instrument panel lower cover. Refer to INSTALLATION .
Perform the diagnosis again. Refer to LEARNING CONTROL .
