Cruise Control Command Switch: Inspection
- Disconnect the cruise control command switch connector.

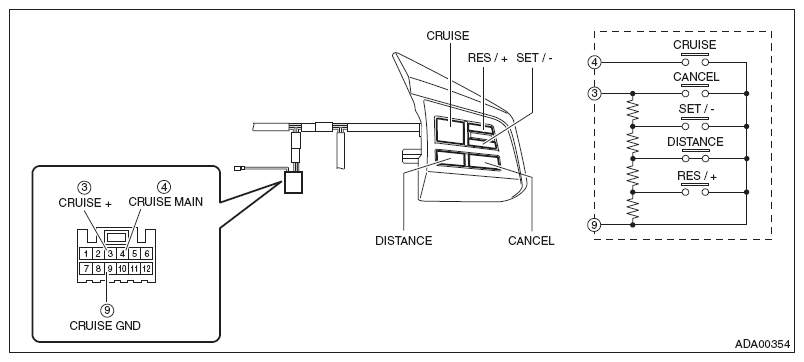

- Check the resistance between cruise control command switch terminals.
Preparation tool:
Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard 3 - 9 CANCEL SET/-RES/+ All OFF Approx. 4 kΩ 3 - 9 CANCEL ON Less than 1 Ω 3 - 9 SET/- ON Approx. 250 Ω 3 - 9 RES/+ ON Approx. 1, 470 Ω 4 - 9 CRUISE (MAIN) OFF 1 MΩ or more 4 - 9 ON Less than 1 Ω - Replace the cruise control command switch if the inspection result is not within the standard.
