Fuel Filler Pipe: Assembly

Install the fuel filler pipe bracket to the fuel filler pipe.

Tightening torque:

7.35 N.m (0.7 kgf-m, 5.4 ft-lb)

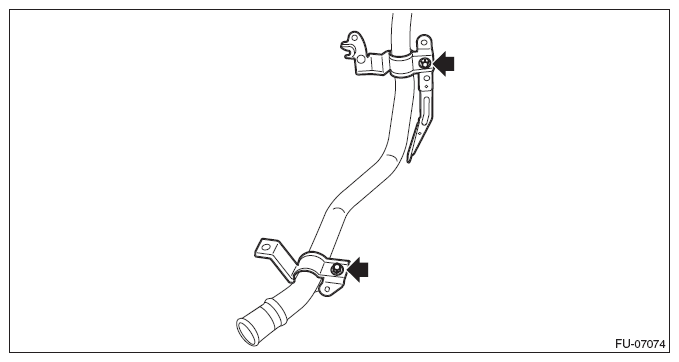

Fig 1: Locating Fuel Filler Pipe Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.
