Oil Control Solenoid: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. (RH side only) Refer to REMOVAL .
Remove the reservoir tank. (LH side only) Refer to REMOVAL .
Disconnect the connector (A) from the intake oil control solenoid, and remove the intake oil control solenoid from the chain cover.
- RH side

  Fig 2: Identifying Intake Oil Control Solenoid Connector With Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

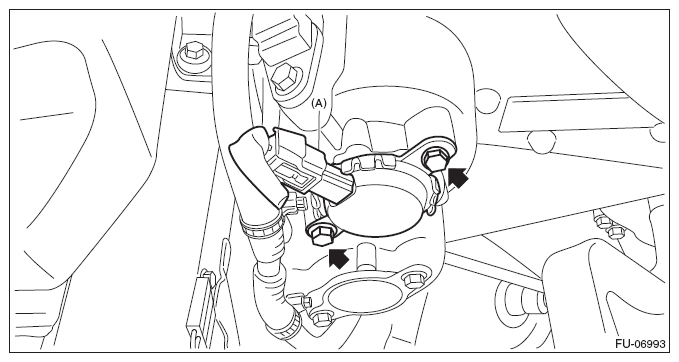

  Fig 3: Identifying Intake Oil Control Solenoid Connector With Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
