Tumble Generator Valve Assembly: Disassembly

  1. Remove the tumble generator valve actuator from the tumble generator valve.
    • LH side

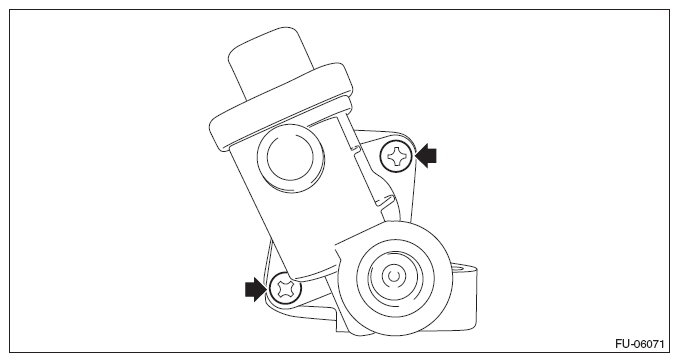

      Fig 1: Locating Tumble Generator Valve Mounting Screws (LH Side)
      G08315439Courtesy of SUBARU OF AMERICA, INC.
    • RH side

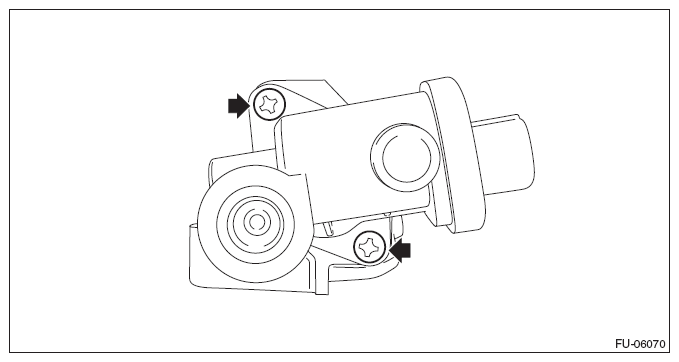

      Fig 2: Locating Tumble Generator Valve Mounting Screws (RH Side)
      G08315440Courtesy of SUBARU OF AMERICA, INC.
